Mini Metal Speaker w/ Wires - 8 ohm 0.5W

από OEM

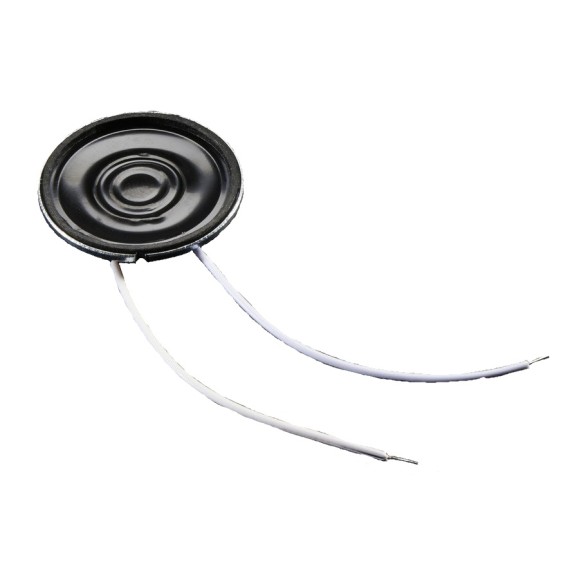

This tiny 1" diameter speaker cone is the perfect addition to any small audio project where you need an 8 Ω impedance and will be using 0.5W or less of power.
09-00001890
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: ADA1890
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
2.50
Χωρίς ΦΠΑ 2.02
+

ΠΕΡΙΓΡΑΦΗ

Listen up! This tiny 1" diameter speaker cone is the perfect addition to any small audio project where you need an 8 Ω impedance and will be using 0.5W or less of power. We particularly like this cone as it's very simple and its metal body is extremely lightweight. It's very similar to the speaker in the Drawdio kit.

Works great with our Wave shield or class D amplifier board. Just be careful not to overdrive it if you're using the class D amp breakouts as it can put 1.7W into the speaker, blowing it out! Start with lower volume and increase carefully.

Dimensions:

  • Diameter: 28mm / 1.1"
  • Circumference: 88mm / 3.5"
  • Weight: 6g

Specifications:

  • Resonance Frequency (FO): 680 ±20% Hz at 1V
  • Rated Impedance: 8 ±20% Ω (at 1KHz)
  • Frequency Range: ~600-10KHz
  • Rated Input Power: 0.25W
  • Max Input Power: 0.5W
  • Temperature Range: -20ºC ~ 55ºC

Documents:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Part Number:
ADA1890
Μικτό Βάρος:
0.0055kg
Χώρα Προέλευσης:
Κίνα
