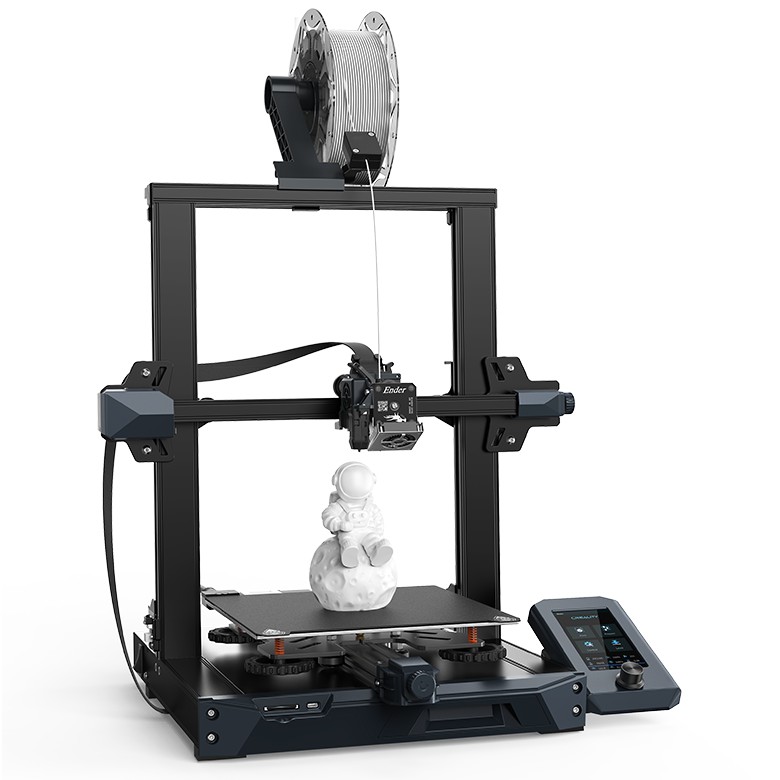

3D Printer - Creality 3D Ender-3 S1 - 220x220x270mm

The Ender 3 S1 is a new and improved version of the very successful Ender 3. Equipped with a newly developed direct dual-gear extruder, automatic bed...
26-00027077
Gross Weight: 11.2kg
Warranty: 12 Months Manufacturer Warranty
Company: Creality 3D
Part Number: Ender-3 S1
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
439.00
Without VAT 354.03
+
WISHLIST COMPARE

DESCRIPTION

The Ender 3 S1 is a new and improved version of the very successful Ender 3.

Equipped with a newly developed direct dual-gear extruder, automatic bed leveling, 32-bit silent mainboard, among other things, the S1 is a very affordable printer with everything you could wish for at this price point. It boasts a unique design 'Sprite' extruder allowing you to print flexible materials out of the box.

It comes pre-fitted with a CR-Touch too! The CR-Touch is an optical bed levelling sensor for next level accuracy, as well as having an optical sensor, it has a metal push pin, lasting much longer than the traditional polycarbonate pins.

It boasts Dual-Z leadscrews for extra stability across the X axis and it also has a synchronous belt to keep the leadscrews in sync with one another.

This is arguably the best designed Ender 3 they have released, the whole machine looks sleek and their choice of materials really finishes this machine off.

New updated Ender-3 S1 3D-Printer with improvments like:

  • New “Sprite” Direct Dual-gear Extruder
  • Z-axis -dual screw
  • 4.3” LCD screen with simple-to-use UI
  • Automatic 16-point bed leveling system
  • Flexible and removable spring steel build surface
  • 32-bit quiet mainboard for silent printing
  • Resume print after power loss
  • Filament run-out sensor

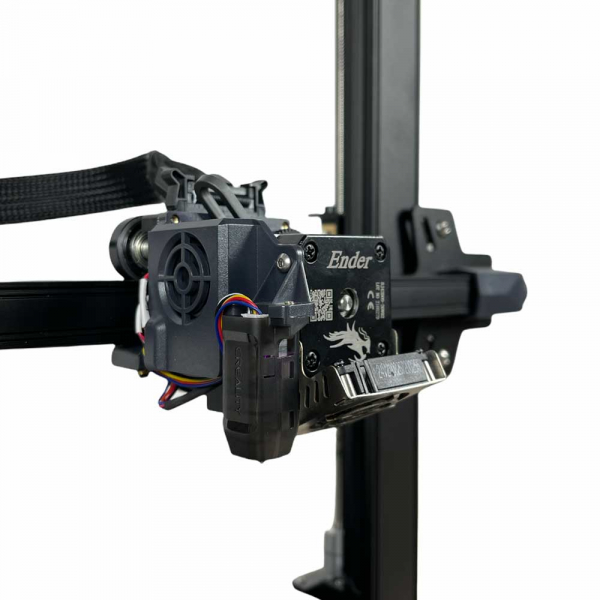

“SPRITE” Direct Extruder
The new extruder, developed by Creality, is said to offer considerable pushing force while only weighing 210 grams. The documentation suggests it’s a geared extruder with a reduction ratio of 3.5:1, with dual gears doing that actual gripping and pushing of the filament.

A filament sensor and resume print function are also present on the S1, which are becoming pretty much standard on any FDM 3D printer worth getting excited about.

CR Touch Auto-Bed Leveling
Creality’s CR Touch setup uses a metal touch probe that makes a cheeky little poke in 16 areas across the print bed in much the same style as BL Touch. You still get giant hand-leveling knobs to dial in the general perpendicularity of the bed, but this new sensor should get you across the line to even first layers.

Quick 6-Step Assembly
For a semi-assembled 3D printer, the Creality Ender 3 S1 is pretty assembled. Creality says when you open the box, the printer is 96% assembled. The S1 can be assembled in just six steps, which isn’t a lot of work and is much quicker than having to build the whole thing from scratch.

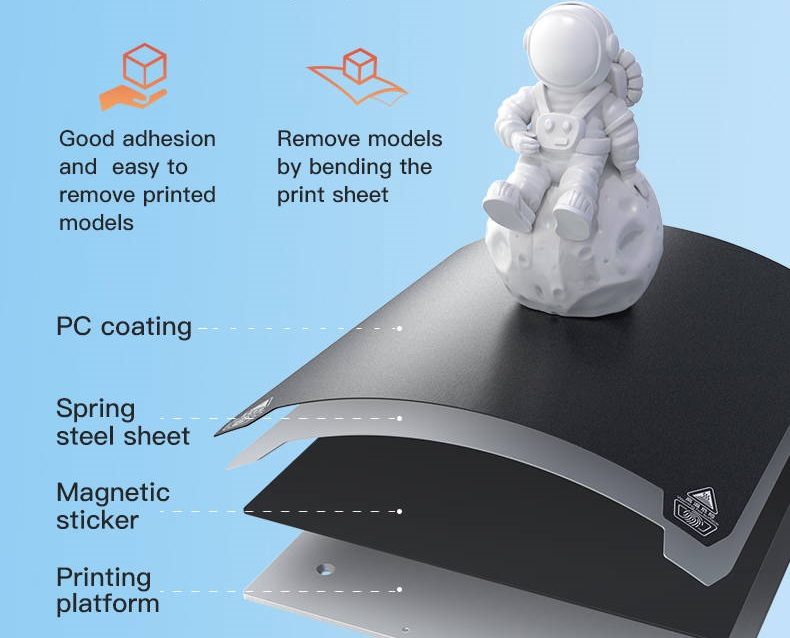

PC Spring Stell Printing Sheet
Ender 3 S1 will come with a spring steel printing sheet that magnetically attaches itself to the print bed. Once your print is complete, you should be able to remove the bed and flex it to release the prints with little effort.



NOTES

  • Assembly is required.

THE PACKAGE INCLUDES



SPECIFICATIONS

Fits Printer:
  • Ender Series
3D Printer Category:
  • Home
Printing Technology:
FFF (Fused Filament Fabrication)
Filament Diameter:
1.75mm
Layer Resolution:
100μm
Max. Print Speed:
150mm/sec
Precision:
±0.1mm
Extruder Quantity:
Single
Nozzle Quantity:
1
Max Nozzle Temp.:
260
Heated Build Plate (Heated Bed):
Yes
Max Bed Temp.:
110
Heated Bed Type:
Magnetic
Leveling:
Automatic
Build Volume X:
220mm
Build Volume Y:
220mm
Build Volume Z:
270mm
Power Supply:
MeanWell
Supported Materials :
  • ABS (small parts)
  • FLEX
  • PET
  • PLA
File Format:
  • G-Code
  • OBJ
  • STL
Working Mode :
  • Offline (SD Card/USB Stick)
  • Online (USB)
WiFi Connectivity:
No

SPECIFICATIONS

  • Print Specifications
    • Nozzle diameter: 0.4mm can be in 0.2, 0.3mm
    • Max Traveling Speed: 150mm/s
    • Feeder system: Direct
    • Print recovery: Yes
    • Filament sensor: Yes
  • Display: 4.3-inch LCD
  • Software
    • Slicer: Cura (Works with Simplify3D not included)
    • Operating System: Windows/Mac/Linux
  • Mechanical
    • Chassis: Imported V-Slot Aluminum Bearings
    • Print bed material: Spring steel sheet
  • Electrical
    • Input: AC 100-265V 50-60Hz
    • Output: DC 24V 15A 360W
    • Plug: EU Power Plug
  • Dimensions
    • 487x453x622mm
    • Weight: 9.1kg

FEATURES

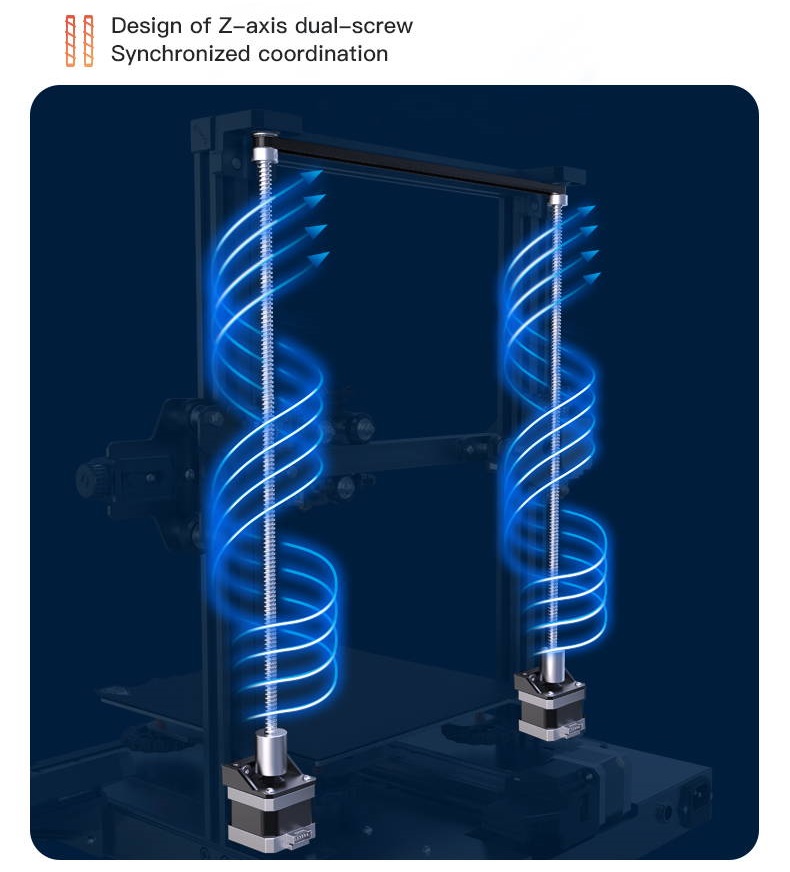

  • Dual Z-axis: Sturdier, more consistent travel through the Z is the goal. A synchronized dual-driven Z-axis can help.
  • Full-size SD: An underrated feature in offline printers, if you ask us. No more losing microSD cards in the shag carpet. Full-size SDs all the way with the Ender 3 S1.
  • Tool drawer: The tool drawer returns. It’s a thoughtful touch that we like to disregard the original purpose of and stash snacks, instead.



FILES

VIDEO

Creality's New Printer Ender 3 S1 Unboxing & Assembly - Enhanced Strength More Reliability
