3D Printer - Zortrax M200 Plus

by Zortrax
Expand your 3D printing capabilities with   Zortrax M200 Plus 3D printer . Easily   manage multiple devices   via using   Wi-Fi and   Z-SUITE...
26-00022937
Company: Zortrax
Made in: Poland
Upon order
Delivery on 4 - 10 Days
No stock in retail store
2,399.00
Without VAT 1,934.68
+
WISHLIST COMPARE

DESCRIPTION

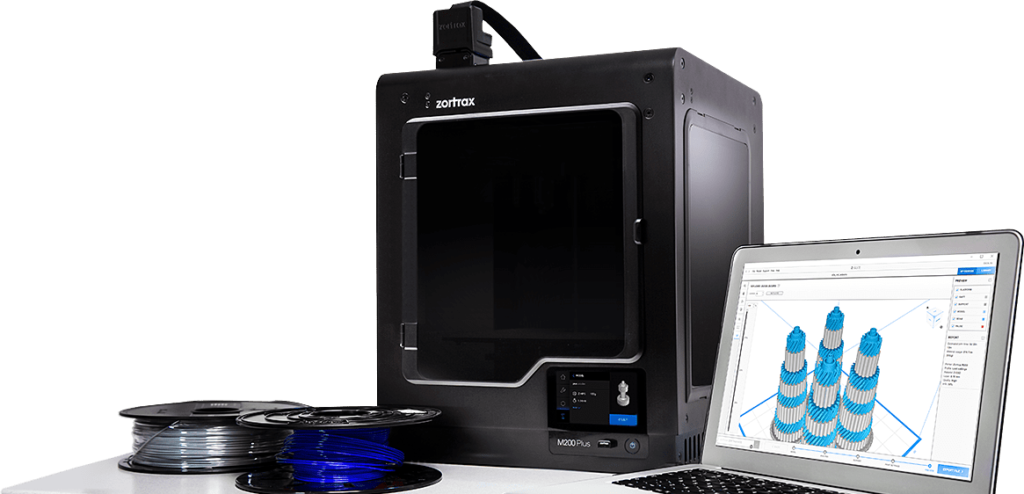

Expand your 3D printing capabilities with Zortrax M200 Plus 3D printer. Easily manage multiple devices via using Wi-Fiand Z-SUITE slicing software. Scale up your generative production now using multiple Zortrax M200 Plus simultaneously. Monitor the progress with the built-in camera. Whether is it for industrial manufacturing or prototyping, the M200 Plus 3D printer offers remarkable dimensional accuracy and consistency of integrated Zortrax Ecosystem. Get ready for additive manufacturing now.

Main product characteristics Plus:

  • Integrated Wi-Fi module – auto wireless firmware
  • Innovative Z-Suite 2 slicer software
  • Scale up your additive manufacturing
  • Built-in touch screen and camera
  • Improved extruder to process flexible filaments
  • Filament detection – Easy material change
  • Use of third-party and Z filaments for Zortrax

SPECIFICATIONS

Extruder Compatibility:
  • Zortrax
3D Printer Category:
  • Professional
Printing Technology:
FFF (Fused Filament Fabrication)
Filament Diameter:
1.75mm
Layer Resolution:
90μm
Precision:
±0.1mm
Extruder Quantity:
Single
Nozzle Quantity:
1
Max Nozzle Temp.:
290
Heated Build Plate (Heated Bed):
Yes
Max Bed Temp.:
105
Heated Bed Type:
Stable Sticker
Leveling:
Automatic
Build Volume X:
200mm
Build Volume Y:
200mm
Build Volume Z:
180mm
Supported Materials:
  • ABS
  • FLEX
  • HIPS
  • PET
  • PLA
  • ULTRAT
  • Z-GLASS
File Format:
  • 3MF
  • DXF
  • OBJ
  • STL
Working Mode :
  • Ethernet (LAN)
  • Offline (SD Card)
  • Online (USB)
WiFi Connectivity:
Yes

EXTRA SPECIFICATIONS

  • Device features
    • Material container: Spool
    • Nozzle diameter: 0.4 mm (0.016 in)
    • Extruder Single: (upgraded for experimental materials)
    • New cooling system Double fan and extruder cooling

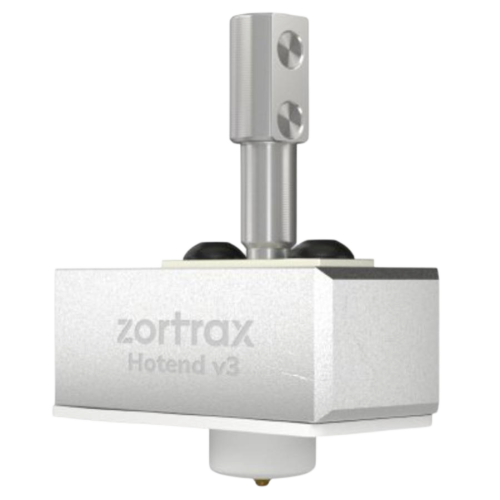

    • Hotend V3 and nozzle with new geometry
    • Material runout: Mechanical endstop
    • Build Plate: Perforated plate with pogopins instead of small connector
    • Support: Mechanicaly removed
    • Materials M Series dedicated materials (recommended) + new Z-SEMIFLEX
    • External materials Applicable

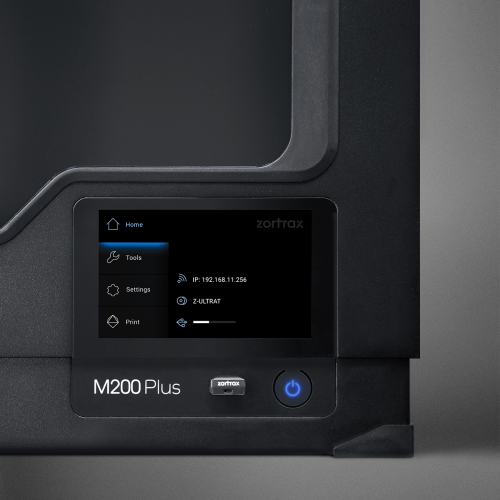

    • Touch screen: 4" IPS 800x480
  • Printing
    • Minimal wall thickness: 400 microns
    • Dimensional accuracy +/- 0,2%*
    • Angle accuracy +/- 0,2%**
    • Processor: Quad Core
    • Operation system: Android
    • Ambient operation temperature: 20° - 30° C (68°-86° F)
    • Storage temperature: 0° - 35° C (32°-95° F)
    • AC input: 110 V ~ 5.9 A 50/60Hz / 240 V ~ 2.5 A 50/60Hz
    • Maximum power consumption: 320 W
  • Software
    • Software bundle: Z-SUITE 2.0
    • Supported operating systems: Mac OS X / Windows 7 and newer versions
    • Output format: ZCODEX
  • Contents:
    • The Zortrax M200 Plus 3D printer
    • Power Cable
    • SD Card and USB SD Card Reader
    • Z-Suite Software (free online installation)
    • Quick Start Guide
    • 1 spool of Z-UltraT Ivory filament
    • Filament Guide Tube
    • Safety Gloves and Glasses
    • Cutting Knife and Scalpel
    • Allen Keys
    • Nozzle Key and Nozzle Needle
    • Pliers
    • Spatula and Tweezers
    • Service Grease



FEATURES

Wi-Fi Module

Create wireless networks of Zortrax M200 Plus 3D printers and transfer files over Wi-Fi. You don’t need to transfer your 3D prints via SD card our USB stick. Simply transfer it via the air.

Material End Detection

Your 3D prints failed because of missing filament? Don’t worry anymore 3D printing will automatically pause when the material runs out. The Zortrax M200 Plus is equipped with on material detection sensor.

Upgraded Cooling System

Extruder cooling system has been improved to guarantee the highest efficiency. With this upgrade the filament will only be heated where it should melt.

Built-in Camera

Watch the 3D printing process on your computer. Now you can control your 3D prints remotely by simply using the built-in-camera to monitor your manufacturing process.

3D Printing Cloud – Network of 3D printers

With Zortrax M200 Plus connected, your computer becomes the command center of smart, reliable additive manufacturing. Wi-Fi module installed in Zortrax M200 Plus offers a fitting alternative for the file transfer between computer and the 3D printer. This 3D printer has Ethernet as well thus you can connect it to your network easily and very stable.

Connect

Wi-Fi module allows you to connect the devices together, creating manufacturing networks ready to cope with the most ambitious projects. If needed scale your production up.

Manage

Manage all your 3D printers easily from a screen of your computer. Divide work between the devices to finish it quickly. If you need a small-scale production, simply add more Zortrax M200 Plus 3D printers.

Check

Rely on the smart functionalities like filament end detection, upgraded extruder, build platform and camera for risk-free 3D printing. You will experience a whole new user experience.

User-friendly Design

Zortrax M200 Plus is an advanced 3D printer. It is ready for high quality 3D printing right after unboxing. Just plug&play 3D print, no assembly or tinkering needed. Easily select available options by touching the icons on the built-in touchscreen. You can preview 3D models directly on the screen, too. Moreover, the interface can be improved with automatic firmware updates over the air via Wi-Fi. Beside transferring files wirelessly, you can use a USB storage device of any kind.

DOCUMENTS

VIDEO

Unboxing Zortrax M200 Plus 3D Printer

Unboxing a desktop 3D printer and setting it up isn’t really a daunting challenge. You can simply have a look at how our trusted teammate, Adam, is able to quickly remove Zortrax M200 Plus from its box, assemble it and plug it in.
