40-pin TFT Friend - FPC Breakout with LED Backlight Driver

This breakout board is something we designed in-house to help us work with 'dot-clock' 40-pin TFT displays that require the RGB pixel data to be clocked in...
09-00001932
Company: Adafruit
Made in: USA
Out of Stock
Product out of stock
Low stock in store
From 12.00
10.20
Without VAT 8.23
Profit: 1.80 (15%)
On sale

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

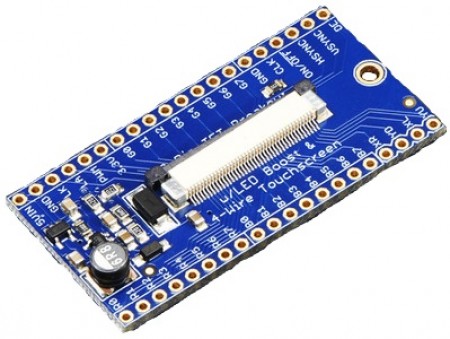

This breakout board is something we designed in-house to help us work with 'dot-clock' 40-pin TFT displays that require the RGB pixel data to be clocked in continuously. These displays have 40-pin Flex PCB (FPC) cables and often require a boost converter for the backlight LED, which makes them annoying to breadboard. To make them breadboardable, we stuck a 40-pin FPC and a FAN5333-based backlight driver with adjustable current onto a labeled breakout board. Now you can poke and probe each pin!

The backlight driver defaults to 25mA and can boost up to 24VDC for up to 7-LED strings. Check your display datasheet for the string configuration, and short out the jumpers to increase the backlight current.

Comes with one assembled and tested PCB. Header and TFT display is not included! We have 4.3" with touchscreen and 5.0" (with and without touchscreen) displays in the shop that work well with this. The 4.3" tend to like 25mA backlight drive, the 5.0" look good with 50mA backlight.

We don't have a tutorial on using this breakout or how to interface with these displays and you must have a processor that can drive the display! This is a tool designed for more advanced makers who already have a microprocessor that has dot-clock-type TFT support built in and just want a wiring assistant. You can grab the Eagle CAD files here
