AlphaBot Basic with Uno Plus

AlphaBot is a robotic development platform compatible with Raspberry Pi and Arduino. It consists of the AlphaBot mainboard, the mobile chassis, and...
31-00012257
Gross Weight: 0.66kg
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
59.90
Without VAT 48.31
+
WISHLIST COMPARE

DESCRIPTION

AlphaBot is a robotic development platform compatible with Raspberry Pi and Arduino. It consists of the AlphaBot mainboard, the mobile chassis, and everything required to get it moving.

This kit comes with controller board UNO PLUS, AlphaBot robotic platform (line tracking, obstacle avoidance, speed measuring, IR control), and ultrasonic sensor.

While utilizing UNO PLUS as controller board, this kit is based on the Arduino software/hardware open source platform. Combined with the modular design, it's an ideal platform to get started with Arduino robot.

  • Raspberry Pi/Arduino interfaces, works with either one separately, or both
  • Arduino extend header, supports Arduino shields
  • Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.
  • LM298P motor driver with diode protection circuit, more safety
  • LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino
  • TLC1543 AD acquisition chip, allows the Pi to use analog sensors



THE PACKAGE INCLUDES

  1. AlphaBot mainboard x1
  2. Tracker Sensor x1
  3. Photo Interrupter Sensor x2
  4. Infrared Proximity Sensor x2
  5. Motor with gearbox 2PCS x1
  6. AlphaBot wheel 2PCS x1
  7. AlphaBot acrylic chassis x1
  8. Motor mounting plate 4PCS x1
  9. omni-direction wheel x1
  10. 20-slots encoder disk 2PCS x1
  11. IR remote controller x1
  12. XH2.54 4cm 4Pin 2PCS x1
  13. XH2.54 4cm 3Pin 2PCS x1
  14. XH2.54 4cm 7Pin x1
  15. AlphaBot screws x1
123456
789101112
131415

Additional Parts in the Kit

  1. UNO PLUS x1
  2. Ultrasonic sensor x1
  3. SG90 servo x1
  4. Ultrasonic sensor adapter x1
  5. Servo mounting plate x1
  6. XH2.54 20cm 4PIN x1
  7. USB type A plug to micro B plug cable x1
1234
567

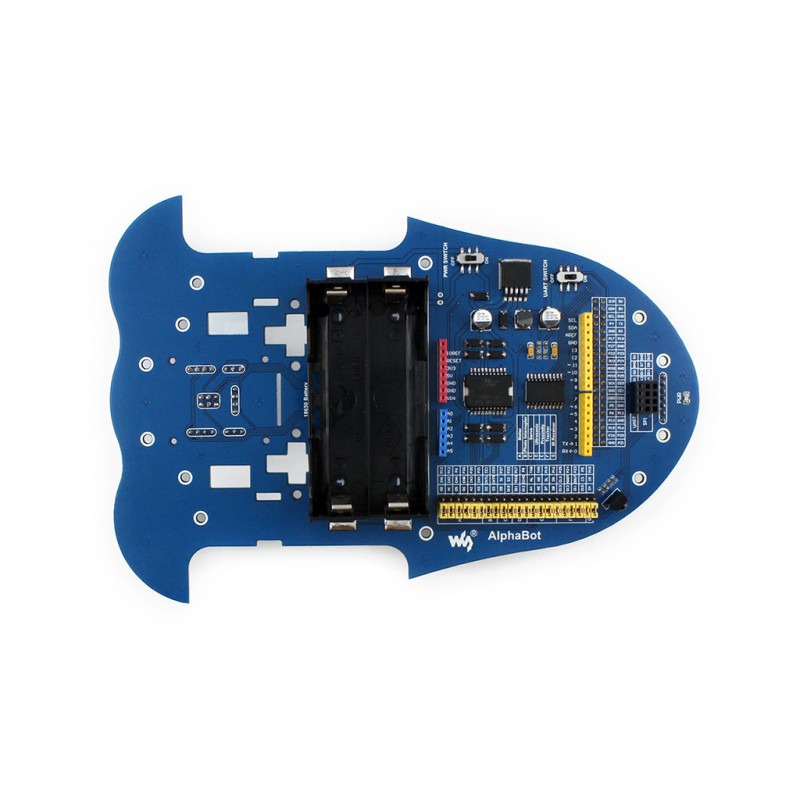

  1. Raspberry Pi interface: for connecting Raspberry Pi
  2. Arduino interface: for connecting Arduino
  3. Motor interface
  4. Ultrasonic module interface
  5. Servo module interface
  6. Obstacle avoidance module interface
  7. Speed measuring interface
  8. Battery holder: supports 18650 batteries
  9. Reserved power input (not soldered): for connecting other external power supply
  10. Arduino expansion header: for connecting Arduino shields
  11. UART interface: for connecting Bluetooth module, to control the robot remotely via Bluetooth
  12. SPI interface: for connecting NRF24L01 wireless module
  13. Line tracking module interface
  14. TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors
  15. LM298P: dual H bridge motor driver chip, up to 2A current
  16. Anti-reverse diode
  17. Power switch
  18. LM2596: 5V regulator
  19. Power indicator
  20. UART switch: turn on to enable serial communication between Raspberry Pi and Arduino
  21. IR receiver: control the robot remotely via infrared
  22. Raspberry Pi/Arduino selection: select the Raspberry Pi or Arduino to control the robot peripherals
