Aluminum Beam - 4.62" (pair)

από SERVOCITY
These aluminum beams are great for making unique links and connections in your Actobotics project
17-00585412
Ογκομετρικό βάρος: 0.04kg
Κατασκευαστής: SERVOCITY
Part Number: 585412
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
7.40
Χωρίς ΦΠΑ 5.97
+

ΠΕΡΙΓΡΑΦΗ

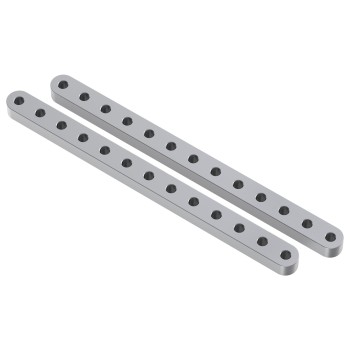

These aluminum beams are great for making unique links and connections in your Actobotics project thanks to 13 thru-holes running its length and are sold in packs of two. Each beam has a length of 4.62", a width of 0.375", a thickness of 0.25", and utilize the 0.77" hub pattern.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

ΣΗΜΕΙΩΣΕΙΣ

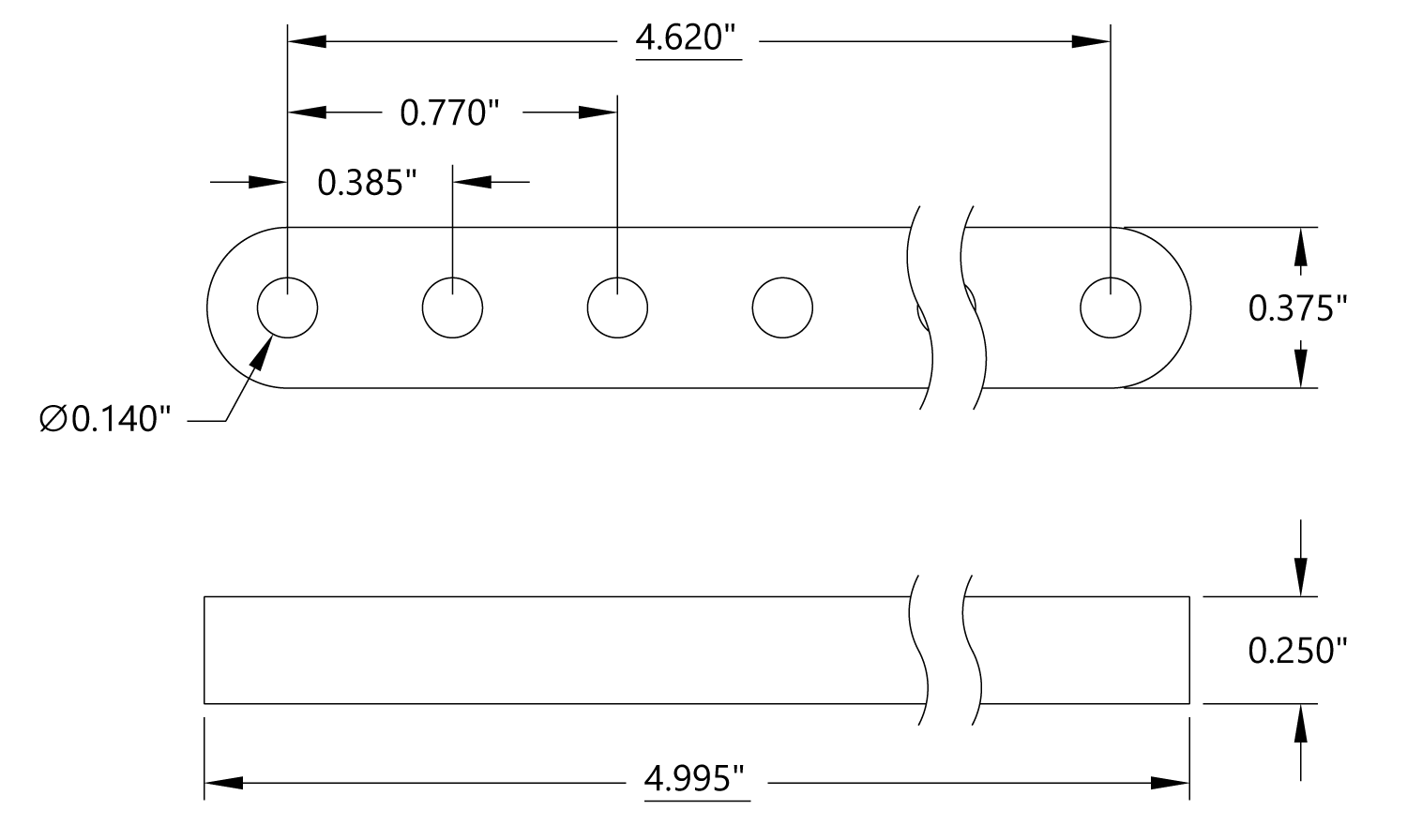

  • The length of these beams is calculated from the center of each thru-hole at opposite ends, the over-all length is 4.995".

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
SERVOCITY
Part Number:
585412
Μικτό Βάρος:
0.03628kg
Χώρα Προέλευσης:
Κίνα
Τύπος :
Aluminum Beam
Μήκος:
4.62"
Υλικό:
Aluminum

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Length - 4.62"
  • Width - 0.375"
  • Thickness - 0.25"
  • Hub Pattern - 0.77"
