Amphenol FCI Clincher Connector (2 Position, Female)

από Amphenol
These Clincher connectors from Amphenol FCI can be used to terminate Flat Flexible Cables (FFCs) to an easy-to-use standard header. Simply insert the end...
03-00014194
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Amphenol
Part Number: 65801-002LF
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
2.20
Χωρίς ΦΠΑ 1.77
+

ΠΕΡΙΓΡΑΦΗ

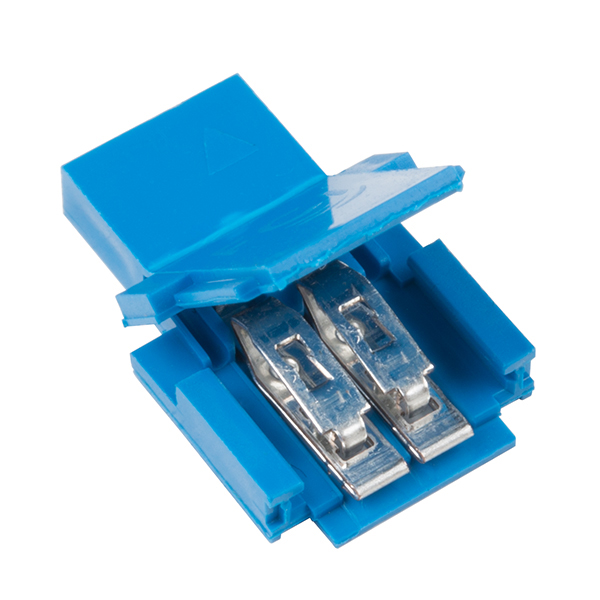

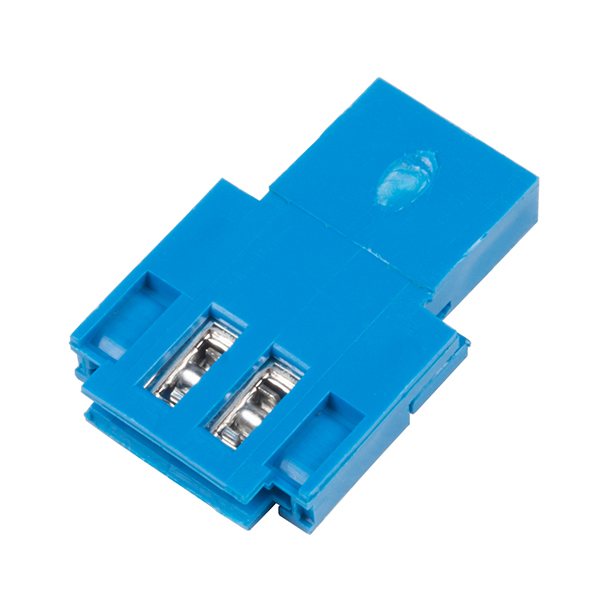

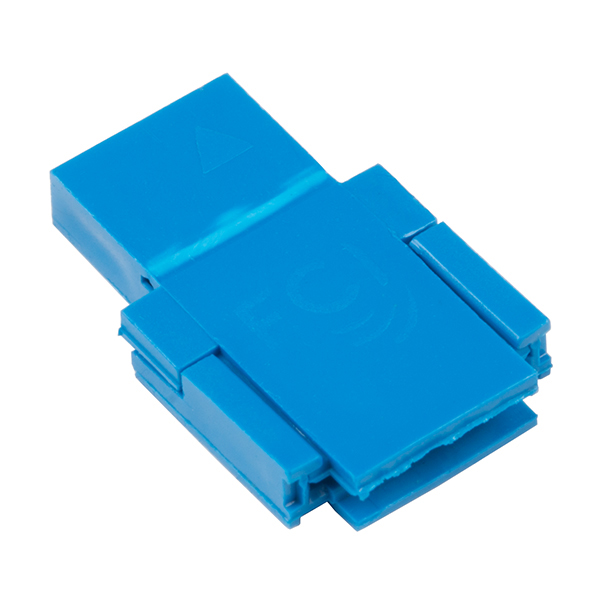

These Clincher connectors from Amphenol FCI can be used to terminate Flat Flexible Cables (FFCs) to an easy-to-use standard header. Simply insert the end of the cable into the connector and press it closed. The teeth inside the connector will "clinch" around the conductors and break them out to two male 0.1" spaced pin headers!

Though the Clincher connector can be used with FFCs, we also like to use them with our FlexiForce sensors and other flex/force sensors found in the Recommended Products section.



ΣΗΜΕΙΩΣΕΙΣ

  • Please be aware that we will not be able to accept returns on this connector if it has been closed. Sorry for any inconvenience this may cause.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Αριθμός Pins:
2 Pin
Αριθμός Γραμμών:
Single
Αρχιτεκτονική Καλωδίου:
  • Θηλυκό
Διάκενο Επαφών:
  • 2.54mm
Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος Ακροδέκτη:
  • Dupont/Header
Κατασκευαστής
:
Amphenol
Part Number:
65801-002LF
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly
:
Ναι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Product Category: FFC & FPC Connectors
  • Product: Free Hanging
  • Number of Positions: 2 Position
  • Mounting Angle: Vertical
  • Contact Plating: Tin
  • Voltage Rating: 500V
  • Current Rating: 2A
  • Series: Clincher
  • Minimum Operating Temperature: -65°C
  • Maximum Operating Temperature: +105°C
  • Housing Material: Thermoplastic (TP)
  • Contact Material: Copper Nickel Alloy
  • Mounting Style: Cable
  • Housing Colour: Blue
  • Insulation Resistance: 5000MOhms
