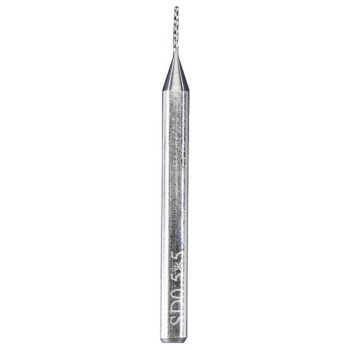

Carbide Square End Mill - 1/8" Shaft - 0.5mm Diameter

by OEM
The cutting part is made from tungsten carbide and are suitable for circuit board cutting and probably some other soft metals and other materials. Each...
09-00002072
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
4.90
Without VAT 3.95
+
WISHLIST COMPARE

DESCRIPTION

The cutting part is made from tungsten carbide and are suitable for circuit board cutting and probably some other soft metals and other materials. Each endmill has a high hardness, wear resistance and strength and they're also super sharp which helps when cutting thru PCBs. These mill bits have a fairly long flute, about 5mm. While this is a bit longer than we are used to, we have found that the bits work quite well and are low cost enough to replace if they break. Note that even carbide bits will dull eventually when cutting PCBs, we found we could cut for about 5 hours on each bit before we find they need replacing.

This product comes with one 0.5mm carbide end mill in a protective plastic case.

Specifications:

  • Total length: 38mm
  • 1/8" Shank
  • Diameter: 0.5mm

SPECIFICATIONS

Type of Tool:
  • Drill
