Waveshare Core2530 (B)

από Waveshare
Core2530   is a ZigBee module based on   CC2530F256 , and the extension interface is compatible with XBee.  Basically this module can be used in two...
31-00011212
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: Waveshare
Part Number: 11212
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
16.90
Χωρίς ΦΠΑ 13.63
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 15.21

ΠΕΡΙΓΡΑΦΗ

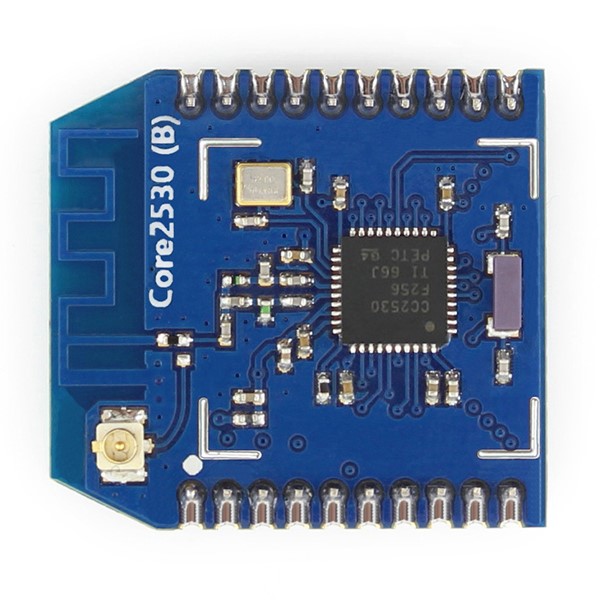

Core2530 is a ZigBee module based on CC2530F256, and the extension interface is compatible with XBee.

 Basically this module can be used in two aspects :

  • Develop application with the provided firmware
    Combined with our provided firmware, this is a simple ZigBee wireless UART module, just as easy to use as any other UART module, and requires NO knowledge about the complicate ZigBee Specification
  • Develop your own firmware
    In this case, you should start from the very underlying to create your solution, what's more, debuggers (like CC Debugger) and knowledge about ZigBee Specification are also required

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
Waveshare
Part Number:
11212
Πρωτόκολλο:
  • Zigbee
Καθαρό Βάρος:
0.004kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly:
Σειρά Πρωτοκόλλου:
Series 2 (ZigBee)
Τύπος Κεραίας:
On-Board

ΣΗΜΕΙΩΣΕΙΣ

  • This product includes ONLY one CC2530 module, while at least two CC2530 modules are required to setup a ZigBee network.
  • Mother board in the photo is NOT included in the price.

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Onboard chip: CC2530F256RHAR
  • Communication distance (open and wide operating environment): up to 130 meters when using PCB antenna
  • Frequency range: 2.4GHz
  • Wide supply-voltage range (2 V–3.6 V)
  • Operating temperature: -40℃ ~ 85℃
  • Serial port baud rate: 38400bps (default), different baud rates are available by software configuration

ΔΥΝΑΤΟΤΗΤΕΣ

  • As easy to use as any UART modules
  • Provided firmware : Coordinator, Router, End Device
    • Router firmware is preloaded by default
  • Supports sending large data packet & fast broadcasting via UART
  • Supports programming via UART (thanks to the Bootloader, and an serial module is required)
  • Supports configuring via upper computer software : working mode, UART port, baudrate, signal channel, etc.
  • Optional hardware interface
    • XBee compatible straight through pin headers (soldered by default)
    • SMT stamp holes are also available (for batch purchase, the pin headers can be removed if required)
  • MISC
    • Auto networking (at least 1 Coordinator and 1 Router are required)
    • Real-time monitoring the signal intensity between Coordinator, Router, and End Device
    • Supports onboard PCB antenna and/or external IPEX antenna

ΔΙΑΣΤΑΣΕΙΣ
