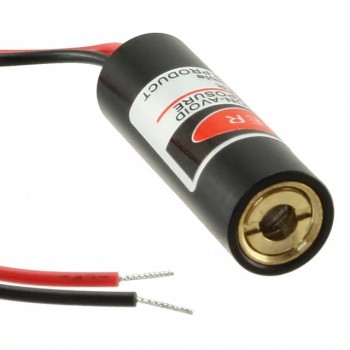

Cross Laser Diode - 5mW 650nm Red

από OEM
This particular module has a lens attached that will turn the dot into a cross.
09-00001058
Ογκομετρικό βάρος: 0.01kg
Κατασκευαστής: OEM
Part Number: ADA1058
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
11.00
Χωρίς ΦΠΑ 8.87
+

ΠΕΡΙΓΡΑΦΗ

You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project.

This particular module has a lens attached that will turn the dot into a cross. This makes it particularly good for laser-vision guidance, targeting, and more! Simply connect power to the red and black wires and you will be lasing in no time.

The cross has a beam spread of approximately 60° in both directions. So from a distance of 5cm, the cross is 5cm tall and 5cm wide. The cross ends have a sharp cutoff so the shape is very clearly defined.

Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page

Specifications:

  • Weight: 11.85g
  • Diameter: 10.11mm
  • Length: 32.82mm
  • Wire length: 100mm
  • 650nm wavelength
  • 2.8 - 5.2V DC voltage input
  • 25mA max current draw
  • Operating temperature -10°C to 40°C

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
OEM
Part Number:
ADA1058
Μικτό Βάρος:
0.0108kg
Χώρα Προέλευσης:
Κίνα
