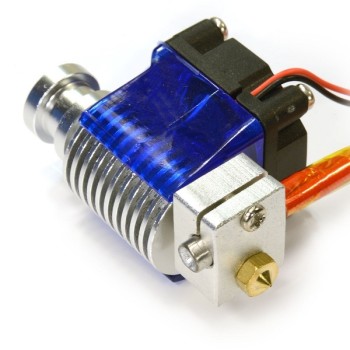

E3D V6 J-head Hotend 1.75mm Filament Direct Extruder Nozzle 0.4mm

by OEM
This 3D Printer J-head Hotend is applied for 1.75mm E3D Direct Extruder. All metal enables working with Polycarbonate up to 260 degrees Celsius and with...
19-00010761
Volumetric weight: 0.07kgs
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
9.90
Without VAT 7.98
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 7.92 6.93 5.94
WISHLIST COMPARE

DESCRIPTION

This 3D Printer J-head Hotend is applied for 1.75mm E3D Direct Extruder. All metal enables working with Polycarbonate up to 260 degrees Celsius and with future materials that require higher working temperatures beyond those supported by plastic extruders and hot end. Tested with PLA, ABS, polycarbonate, nylon and PVA. This kit requires extra parts such as electronics, wiring, etc to complete its functionality.

SPECIFICATIONS

3D Printer Consumables:
Hotend Kit
Extruder Compatibility:
  • E3D

Notes

  • Fan, Heater, NTC thermistor and Nozzle 0.4mm inlcuded.

EXTRA SPECIFICATIONS

  • Material: Aluminium
  • Extrusion nozzle: 0.4mm
  • Print Material: 1.75mm consumables (materials, including: ABS, PLA, pvc, wood, etc.).
  • Heater: Voltage 12V, 40W, 1 M cable length
  • NTC Thermistor 100Kohm
  • Maximum heating temperature sensitive resistor is 260 degrees
  • Cooling Fan: 30x30x10mm
  • Heating Block: 20x16x12mm

Dimensions

  • Total length: 62.3mm
  • Weight: 74g

Contents

  • 1x J-head Hotend for E3D V6 Filament Direct Extruder
  • 1x Cooling fan with mount
  • 1x Thermistor: 100K NTC B 3950 ±1% ,1m long
  • 1x Brass Nozzle - 1.75mm 0.4mm
  • 1x Heat tube: 12V 40W,1m long
