Extruded Aluminum Box - 90x82x26mm

από OEM

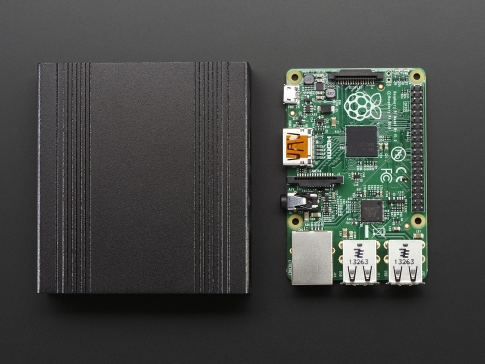

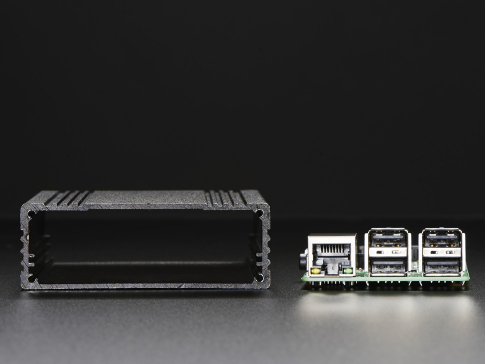

The inside has circuit board slots so if you have a custom PCB, it can slot in without screws and won't rattle around too much.
09-00002230
Ογκομετρικό βάρος: 0.13kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: ADA2230
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
7.30
Χωρίς ΦΠΑ 5.89
+

ΠΕΡΙΓΡΑΦΗ

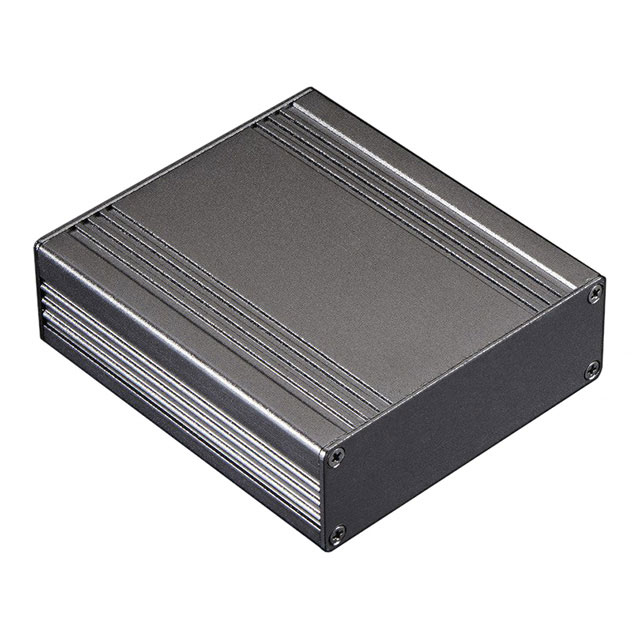

If you have a circuit board or a project you want enclosed, but need something extra durable, this extruded box is absolutely perfect.  It's made from solid anodized aluminum so it's still lightweight while being durable, it's also easy to machine or drill. The end-plates come off and you could cut out a custom end plate from another material if you like.

The inside has circuit board slots so if you have a custom PCB, it can slot in without screws and won't rattle around too much.  We thought this would be perfect for something like a DIY audio amplifier or maybe even a measurement tool that does best with RF shielding.

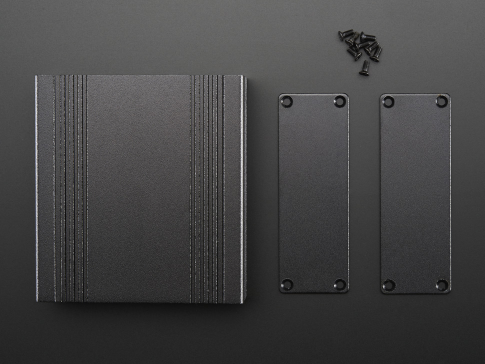

These also come in a nice dark anodized-black aluminum.  Each comes with a box, eight screws, and two panels for the sides.  Screws are 6mm length, M2.5 size, with a .45mm pitch if you lose one or need more.

Dimensions: 90mm x 82mm x 29mm / 3.5" x 3.2" x 1.1"

Interior dimensions: 78mm x 25mm / 3.1" x 1.0"

Weight: 106g

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Part Number:
ADA2230
Μικτό Βάρος:
0.1278kg
Χώρα Προέλευσης:
Κίνα
Χρώμα:
Μαύρο
Διάσταση X
:
90mm
Διάσταση Y:
82mm
Διάσταση Z:
26mm
Υλικό:
Aluminium
