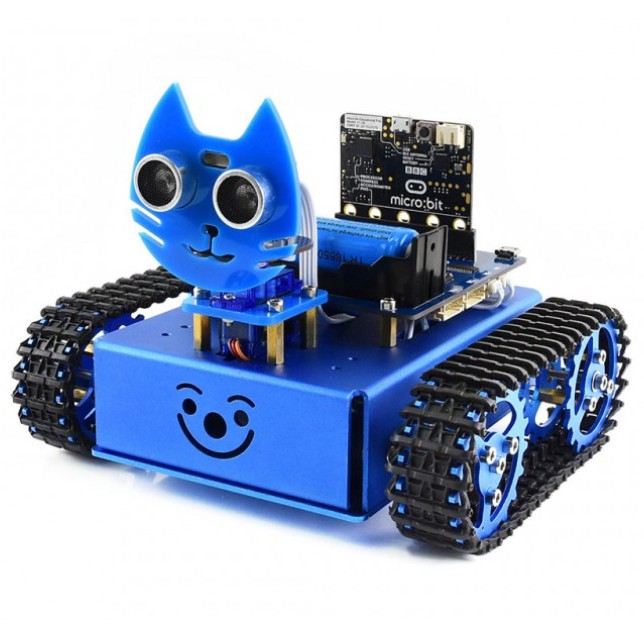

KitiBot Tracked Version for BBC micro:bit

When   KitiBot   meets   micro:bit , when kids meet programming, the mysterious robotics becomes simple, each interesting idea will come true. By using...
31-00014983
Company: Waveshare
Part Number: 14983
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
99.90
Without VAT 80.56
+
WISHLIST COMPARE

DESCRIPTION

When KitiBot meets micro:bit, when kids meet programming, the mysterious robotics becomes simple, each interesting idea will come true. By using the graphical programming software, learning programming, and exploring robotics would be as easy as building blocks.

This KitiBot tracked robot kit uses the BBC micro:bit as the host controller, combined with several functional modules, it is easy for the kids to experience robotic tricks such as: line tracking, obstacle avoiding, ultrasonic ranging, servo operation, Bluetooth remote control, etc

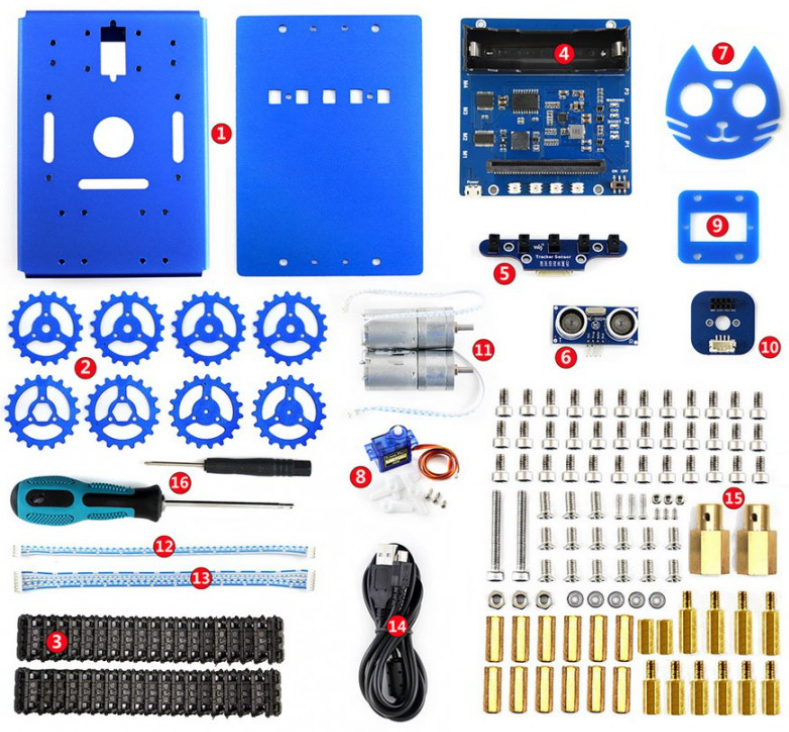

THE PACKAGE INCLUDES

  1. Metal box x1
  2. Gears 8PCS x1
  3. Caterpillar track 2PCS x1
  4. KitiBot for micro:bit expansion board x1
  5. Line tracking sensor x1
  6. Ultrasonic sensor x1
  7. KitiBot acrylic head x1
  8. Servo x1
  9. Servo mounting board x1
  10. Ultrasonic adapter x1
  11. 370 coding motors 2PCS x1
  12. PH2.0 20cm 4Pin same side contact cable x1
  13. PH2.0 20cm 7Pin same side contact cable x1
  14. USB type A plug to micro B plug cable x1
  15. KitiBot for micro:bit T screws x1
  16. Screwdrivers 2PCS x1



NOTES

  • This product requires two 18650 batteries to work, which are NOT included and should be purchased separately.
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

The KitiBot Base Board

  • Onboard connector for plugging in micro:bit
  • Integrates MP2636 Li-ion battery charger with system boost, allows charge the battery even when using
  • Integrates DW01+8205S Li-ion battery protection circuitry: reverse protection, over charge/discharge protection, over current protection, and short circuit protection
  • Integrates TB6612FNG dual H bridge motor driver, high efficiency, low heating
  • Integrates PCA9685 PWM controller, micro:bit IO expansion
  • Integrates TLC1543 AD acquisition chip, allows connect multi analog sensors to the micro:bit
  • Integrates 4x APA102 colorful LEDs, dual-line control, no more conflict between the WS2812B RGB LED and Bluetooth
  • Onboard buzzer to play music

  1. micro:bit connector – for connecting micro:bit
  2. MP2636 – power management, for both charging and boost discharging the battery
  3. 8205S – dual N-Ch MOSFET, for circuit protection
  4. DW01 – Li-ion battery protection charge/discharge protection
  5. RT9193-33 – 3.3V voltage regulator, supplies power for micro:bit
  6. MLT-8530 – buzzer
  7. PCA9685 – PWM controller, micro:bit IO expansion, I2C interface
  8. TB6612FNG – dual H bridge motor driver
  9. TLC1543 – 10-bit AD acquisition chip, allows connect line tracking analog sensor to the micro:bit
  10. APA102 – dual-line control RGB LED
  11. 18650 battery holder
  12. Power switch
  13. Micro USB power interface – for charging the Li-ion battery
  14. Indicators
    • WARNING: Li-ion battery reverse warning
    • CHG: charge mode
    • BOOT: boost mode
    • PWR: power
  15. Module connectors (bottom side) – for connecting servo, ultrasonic module, line tracking module
  16. Motor connectors (bottom side)

SPECIFICATIONS

Age:
12+
Micro:bit Compatible:
  • V1
  • V2

FILES

VIDEO

KitiBot-MG Tracked version Assembling

This is a assembling video show you how to assemble the KitiBot-MG-T of Waveshare.
