Lead Screw Nut 8mm Lead 8mm (Pattern 0.770")

The 8mm lead screw nut with the .770" pattern is intended to be used with our 8mm lead screw. The threads are precisely cut to provide minimal backlash or...
17-00545315
Volumetric weight: 0.03kgs
Company: Servocity
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
10.50
Without VAT 8.47
+
WISHLIST COMPARE

DESCRIPTION

The 8mm lead screw nut with the .770" pattern is intended to be used with our 8mm lead screw. The threads are precisely cut to provide minimal backlash or side to side rock while retaining a low coefficient of friction between the bronze nut and the stainless lead screw. The .770" pattern provides a simple way to attach Actobotics components to your linear drive system, or if you want a clamping solution to easily index the nut you can use a 1" clamping hub around the outer diameter of the lead screw nut.

SPECIFICATIONS

Diameter:
8mm
Lead:
8mm
Number of Starts:
4
Material:
Bronze

EXTRA SPECIFICATIONS

  • Material: Bronze
  • Lead Pitch: 2mm
  • Number of Threads: 6.35
  • Number of Starts: 4
  • Hole Pattern: 0.770"

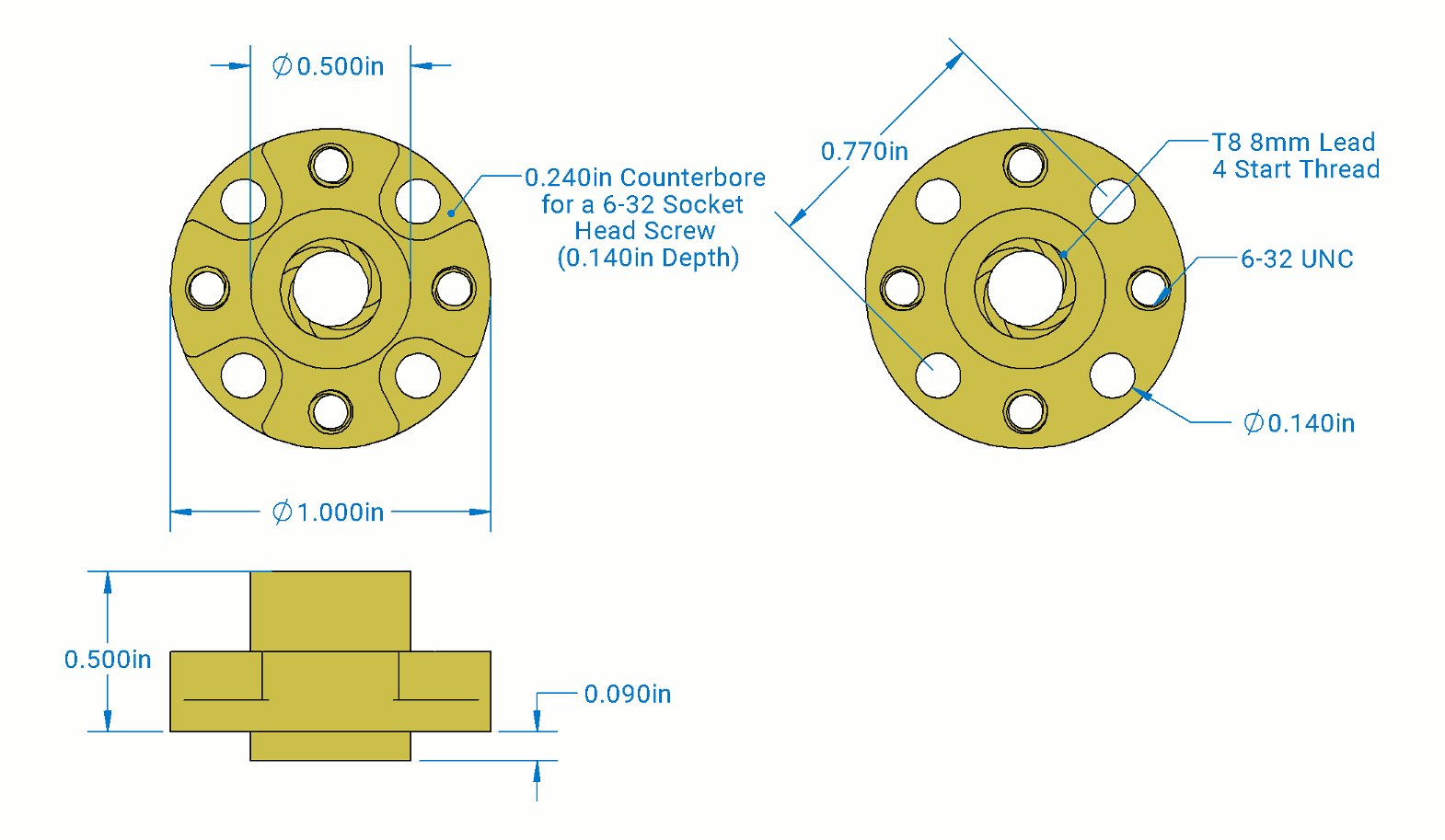

Dimensions
