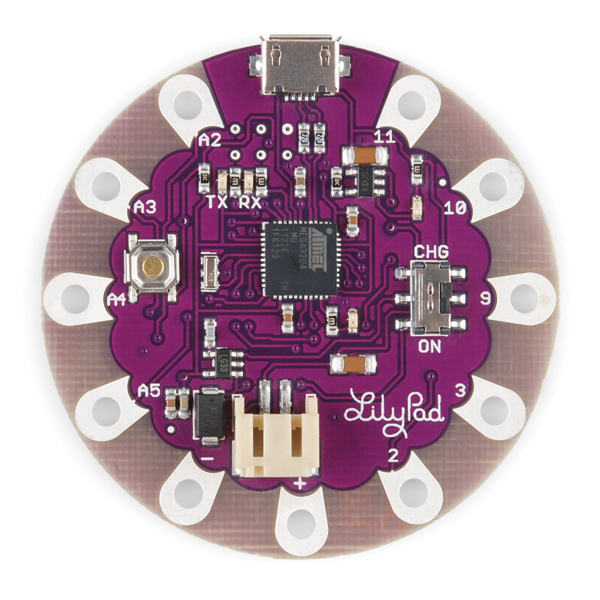

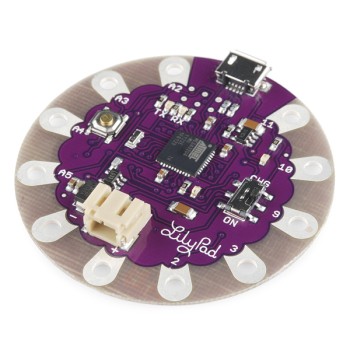

LilyPad Arduino USB - ATmega32U4 Board

The LilyPad Simple just got a whole lot... simpler. We've updated the Simple board to create the LilyPad USB by replacing the classic ATMega328 with the new ATMega32U4.

03-00012049
Ογκομετρικό βάρος: 0.01kg
Κατασκευαστής: SparkFun Electronics
Part Number: DEV-12049
Χώρα Προέλευσης: ΗΠΑ
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
34.90
Χωρίς ΦΠΑ 28.15
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 33.16

ΠΕΡΙΓΡΑΦΗ

The LilyPad Simple just got a whole lot... simpler. We've updated the Simple board to create the LilyPad USB by replacing the classic ATMega328 with the new ATMega32U4. Not only does that mean that it's running a variation of the latest and greatest bootloader, but it also means no more FTDI Basic! The only extra piece of hardware you need to program the LilyPad USB is a micro-USB cable, since the new IC has built-in USB support. The LilyPad USB is also officially supported in the Arduino IDE as of version 1.0.2!

Just like the LilyPad Simple, this board features a JST socket so you can directly connect a Li-Po battery for power and an on-board power switch so you can turn it off when you're not feeling particularly blinky. These boards were designed to streamline your next sewable project by keeping things simple and giving you more room to work while eliminating the need to sew a power supply. The LiPo battery is even rechargeable through the board, no more special external LiPo chargers required!

LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They're even washable!

Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles and also to Arduino LLC to help fund continued development of new tools and new IDE features.

Dimensions:

  • 50mm outer diameter
  • Thin 0.8mm PCB

Documents:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
SparkFun Electronics
Part Number:
DEV-12049
Μικτό Βάρος:
0.008kg
Χώρα Προέλευσης:
ΗΠΑ
BoxNow Product
