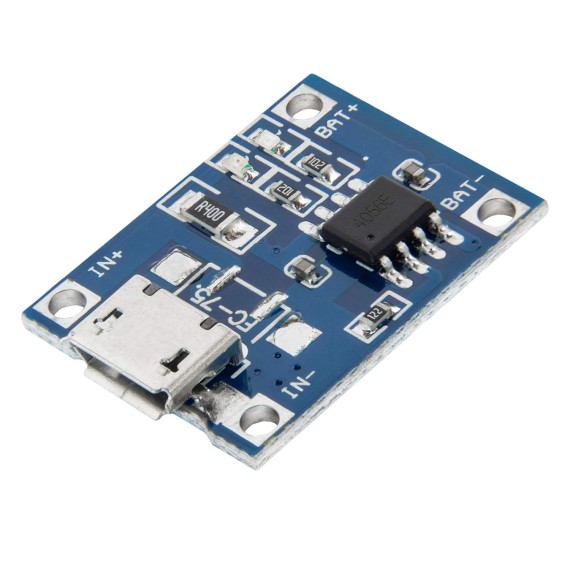

Lithium Battery Charger Module 1A - TP4056

by OEM
This is a 3.7V lithium battery charger module based on TP4056 with Micro USB interface. It is small size and light weight, especially for a single lithium battery charging.
19-00014056
Volumetric weight: 0kgs
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.99
Without VAT 0.80
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.79 0.69 0.59
WISHLIST COMPARE

DESCRIPTION

This is a 3.7V lithium battery charger module based on TP4056 with Micro USB interface. It is small size and light weight, especially for a single lithium battery charging.

Specifications:

  • Input Voltage 4.5 - 5.5V
  • Output Voltage 4.2V
  • Max. Output Current 1A
  • Max. Output Power 4.2W
  • Working Temperature -10-85℃
  • Conversion Efficiency 80%
  • Charging indicator: Red LED charging, Blue LED full.
  • Input Interface: Micro USB port.

Dimensions 0.98x0.75x0.39 in (2.5x1.9x1cm)

Weight 0.06 oz (1.7 g)

Documents:

SPECIFICATIONS

Chemistry:
  • Lithium-Ion (Li-Ion)
