Magnetic PEI Coated Flexible Steel Plate 235x235mm

by OEM
The new  Magnetic PEI Coated Flexible Steel Plate  consists of three parts. The first one is the magnetic surface that you will attach to the printers bed....
59-00012263
Company: OEM
Part Number: MAG-STEEL-PEI-235
Made in: China
Out of Stock
Product out of stock
No stock in retail store
29.90
Without VAT 24.11

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

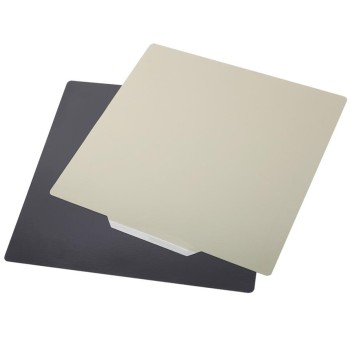

The new Magnetic PEI Coated Flexible Steel Plate consists of three parts. The first one is the magnetic surface that you will attach to the printers bed. The second and third one is the high quality spring steel sheet that is covered with a sheet of the best PEI.

The Magnetic PEI Coated Flexible Steel Plate is the perfect surface to print on, it's very durable and easy to manage. And best of all, thanks to the Flexible plate your prints will be very easy to remove. Just give it a small bend and the print will pop right off.

The Magnetic PEI Coated Flexible Steel Plate is based on a ferrit core which is much more heat resistant than neodymium magnets. This Flexible Steel Plate can withstand temperatures up to 130°C without any problems, so you can even use it with ABS.



NOTES

  • How To Use
    • Unpack your Flexible Steel Plate, attach the magnetic surface to your print bed and then attach the spring steel plate with the PEI attached to it onto the magnetic surface, then re-level your print bed. You are now ready to print away. Parts should come free from the surface with almost no issue at all.
    • PLA does not require heat but turning the heated bed up to 45°C helps. You don´t need any adhesives but if you are going to print something large or for a long time, we recommend using the PrimaFix adhesive stick, it will make your parts stick even better and release even easier when the print is done.
    • After the print is done, just let the plate cool down, remove the plate and give it a gentle bend. You can then just “pop” the model off the plate. Before each print, wipe your PEI surface down with 70-91% Isopropyl alcohol, to ensure that you wipe away any grease or other residues that may have accumulated on the surface. This will help increase your surface adhesion greatly.
    • Use acetone, isopropyl alcohol, methyl alcohol, or soap to clean your PEI after use.

SPECIFICATIONS

Fits Printer:
  • CR-20 Pro
  • Ender Series
  • Mega Zero
3D Printer Consumables:
Build Surface/Bed Adhesion

SPECIFICATIONS

FEATURES

  • Magnetic and flexible
  • PEI is one of the best surfaces you can use for printing
  • Very Easy to use
  • Fits most printers
  • Strong and durable
