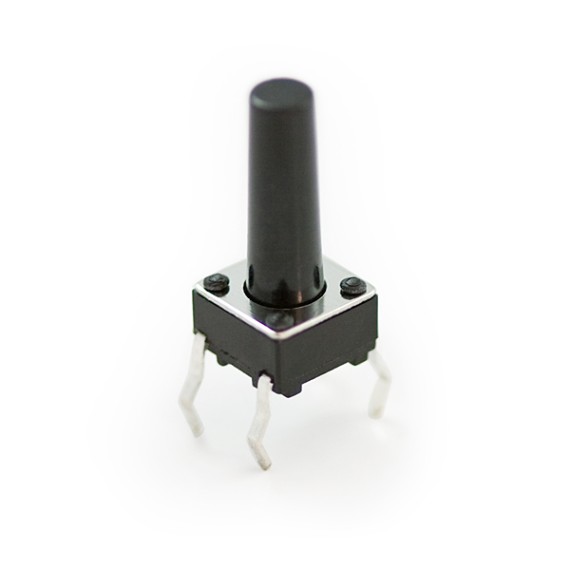

Mini Push Button Switch - Tall

by Ninigi

Miniature Single Pull Single Throw switches.

05-00018495
Company: Ninigi
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.0800
Without VAT 0.06
+
Our quantity discounts:
Quantity 100+ 500+ 1000+
Price 0.0496 0.0352 0.03
WISHLIST COMPARE

DESCRIPTION

Miniature Single Pull Single Throw switches. These are high quality Omron type B3F momentary on switches. This switch has a very large 10-13mm tall button. Perfect as an embedded switch behind an enclosure wall. Rated up to 50mA.

SPECIFICATIONS

Contacts configuration :
SPST-NO
Switching method :
OFF-(ON)
DC or AC Rating:
0.05A / 12VDC
Leads for:
PCB

EXTRA SPECIFICATIONS

  • Switch type microswitch
  • Stable positions number 1-position
  • Contacts configuration SPST-NO
  • DC contacts rating (at resistance load) 0.05 A / 12 VDC
  • Mounting THT
  • Switching torque 1.6N
  • Body dimensions 6 x 6mm
  • Button height (measured from PCB) 13mm
  • Switching method OFF-(ON)
  • Button shape round
  • Terminal pitch 4.5x6.5mm
  • Operating temperature -25...70°C
  • Actuator colour black
  • Leads for PCB, straight
  • Max. contact resistance: 50mΩ
  • Min. insulation resistance 100MΩ
  • Soldering temperature 250°C
