Motor Mount - Clamping

από SERVOCITY

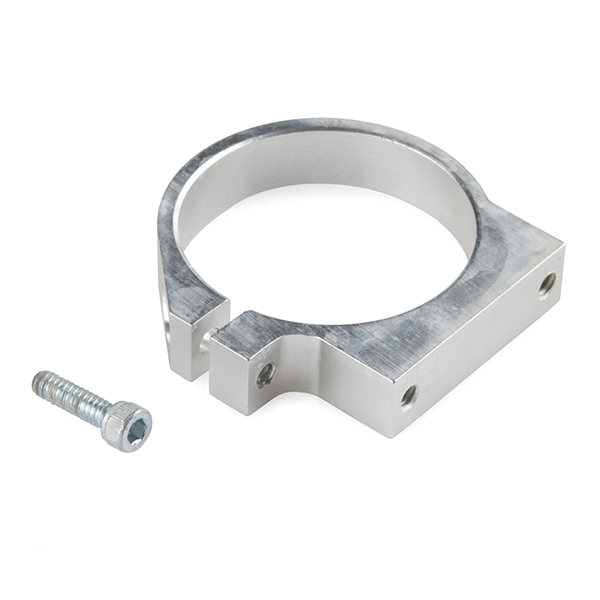

The Aluminum Clamping Motor Mount is great for applications where the perfect motor alignment is needed.
17-00555116
Ογκομετρικό βάρος: 0.01kg
Κατασκευαστής: SERVOCITY
Part Number: 555116
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
8.70
Χωρίς ΦΠΑ 7.02
+

ΠΕΡΙΓΡΑΦΗ

The Aluminum Clamping Motor Mount is great for applications where the perfect motor alignment is needed. When used in conjunction with a gearmotor that has an offset shaft, you can index the motor by sliding the motor forward/aft in the mount or rotating it within the mount. It utilizes a 1.5" hole pattern, and a single set-screw for securing your motor (37mm body diameter).

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

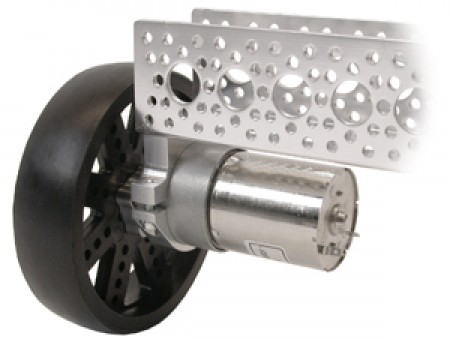

Great for mounting our Standard Spur Gear Motors.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
SERVOCITY
Part Number:
555116
Μικτό Βάρος:
0.013605kg
Χώρα Προέλευσης:
Κίνα
Διάμετρος Κινητήρα:
37mm

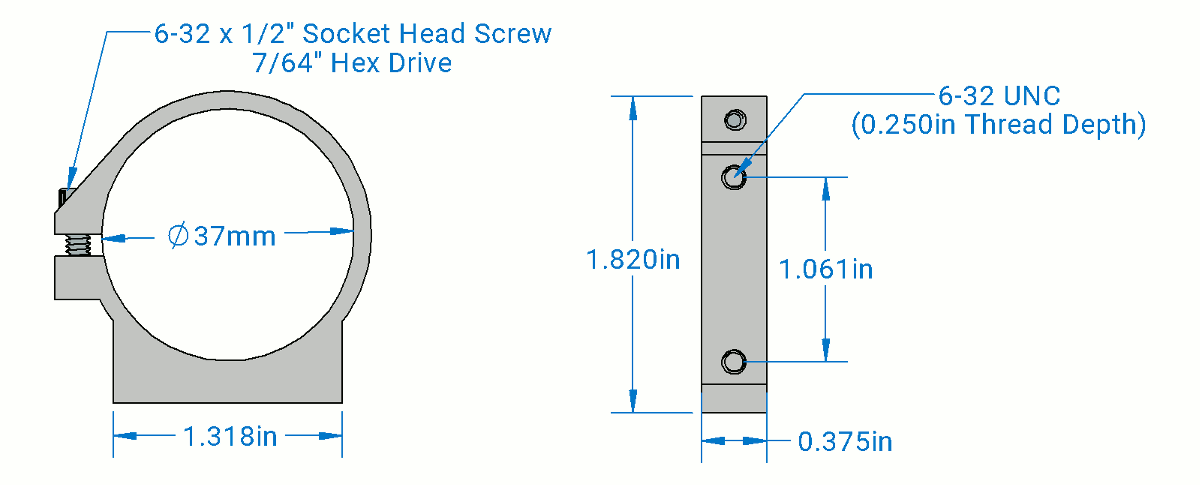

  • The included clamping screw is a 6-32 x 1/2” zinc-plated socket head screw that uses a 7/64 hex key.

ΔΙΑΣΤΑΣΕΙΣ
