ΔΩΡΕΑΝ ΜΕΤΑΦΟΡΙΚΑ για παραγγελίες άνω των 85.00 έως 2kg

Αισθητήρας Ρεύματος Non-Invasive - 100Α

από OEM

This non-invasive current sensor clamped around the supply line can measure a load up to 100 Amps, and allow you to calculate how much current pass through it.

11-00012546
Ογκομετρικό βάρος: 0.08kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.79
Χωρίς ΦΠΑ 10.32
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 10.23 8.95

ΠΕΡΙΓΡΑΦΗ

This non-invasive current sensor clamped around the supply line can measure a load up to 100 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load.

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

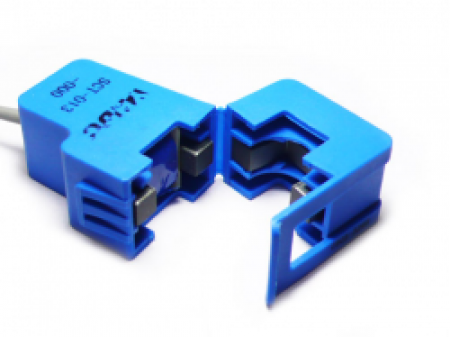

The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.075kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Ρεύματος

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Input Current: 0~100A AC
  • Output Mode: 0~50mA
  • Non-linearity: ±3%
  • Turn Ratio: 100A:0.05A
  • Resistance Grade: Grade B
  • Work Temperature: -25°C ~ ﹢70°C
  • Dielectric Strength(between shell and output): 1000V AC/1min 5mA

ΔΥΝΑΤΟΤΗΤΕΣ

  • Suitable for the current measuring
  • Monitoring and protection of AC motor
  • Lighting equipment
  • Air compressor
