Nut Block for 8mm Metric Acme Lead Screw

από RATRIG
This 8mm Acme Nut Block is a great choice for many projects requiring lead screw linear motion. It serves more than one purpose in that it can be mounted to...
27-99920823
Ογκομετρικό βάρος: 0.01kg
Κατασκευαστής: RATRIG
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.90
Χωρίς ΦΠΑ 5.56
+

ΠΕΡΙΓΡΑΦΗ

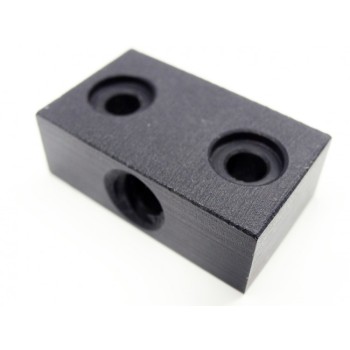

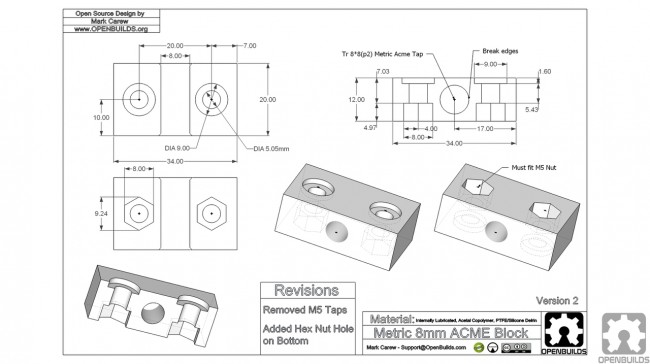

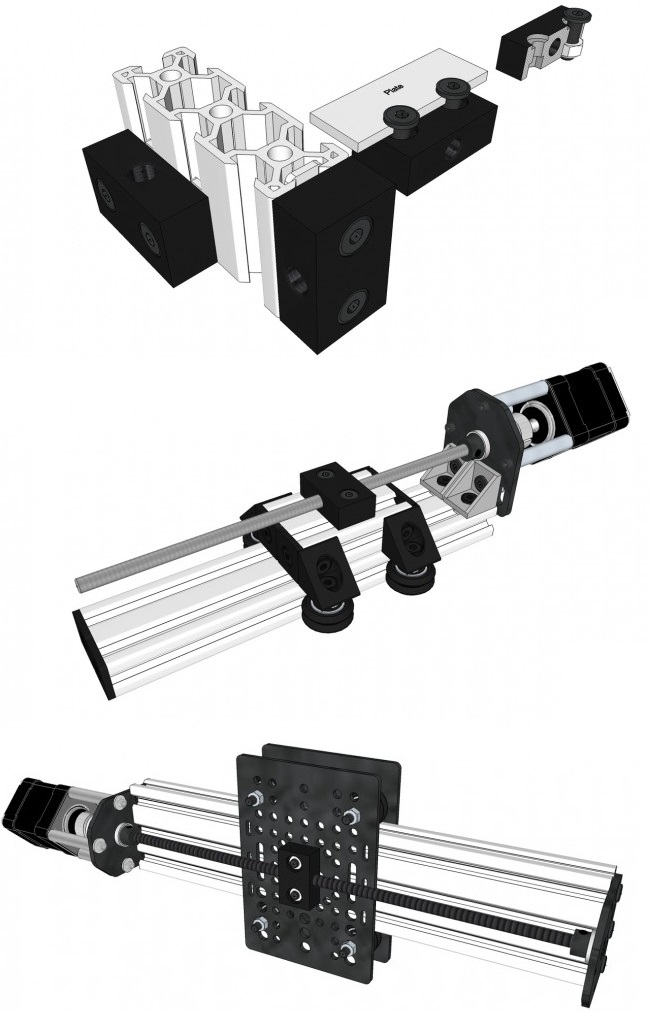

This 8mm Acme Nut Block is a great choice for many projects requiring lead screw linear motion. It serves more than one purpose in that it can be mounted to the bottom of a 3mm/1/8" plate utilizing M5 nylon insert nuts and 15mm M5 screws or can also be mounted directly to V-Slot utilizing two channels with 15mm M5 low profile screws and two tee nuts. These mounting choices allow for a host of modular machine applications. You can mount this block along any length of V-Slot to create your linear motion.

Use in conjuntion with the 8mm Metric Lead Screw.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
RATRIG
Μικτό Βάρος:
0.009kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Pitch: 2mm
  • Starts: 4
  • Lead: 8mm
