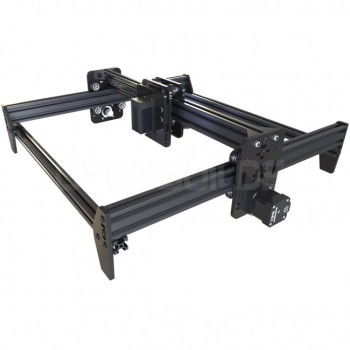

OpenBuilds ACRO System 500x1000mm Βlack

The OpenBuilds ACRO System was developed to be the most accurate and cost effective positioning system in its class. The ACRO System incorporates the...
27-99930109
Company: OpenBuilds
Made in: USA
In Stock
Ships in 24 Hours
No stock in retail store
189.90
Without VAT 153.15
+
WISHLIST COMPARE

DESCRIPTION

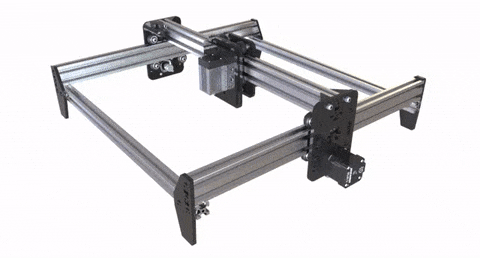

The OpenBuilds ACRO System was developed to be the most accurate and cost effective positioning system in its class. The ACRO System incorporates the OpenBuilds V-Slot system and, therefore, has the unique ability to expand to multiple sizes creating a size configuration custom to your needs. Choose the size that best fits your workshop. The ACRO is an extremely versatile modular system that allows for precise positioning of many different mountable tools and attachments.



SPECIFICATIONS

Series:
  • ACRO
Profile:
  • 2020
  • 2040
Material:
Aluminium

EXTRA SPECIFICATIONS

  • OpenBuilds ACRO System Specs:
    • 4.5 micron resolution - 30% higher resolution than systems in its class
    • Z Axis Travel 70mm - (2-3/4") manual adjustable Z axis length
    • Available in Industrial Black or a Sleek Silver
    • Attachment Plate includes mounting holes for multiple attachments & tools
    • Quick assembly time
  • Material: Aluminium 6063 T5
  • Coating: Black Anodized
  • Color: Black

FEATURES


  • Laser Diodes can be attached to the ACRO system mounting plate

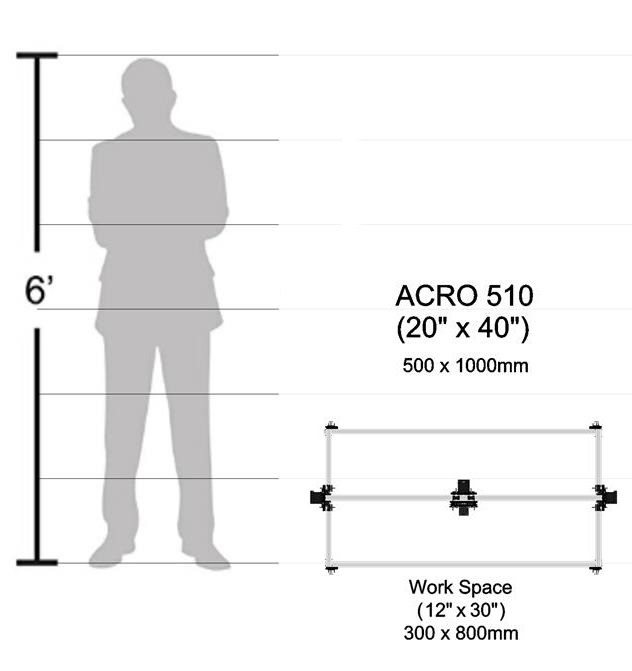

Dimensions

Contents

DOCUMENTS

  • Assembly Instructions
  • LaserWeb Software (can also control milling machines, draw bots, etc.)
    • Please note: There are many different options for software packages that can be used for design and control.
