Βολτόμετρο DC - 4.5-30VDC

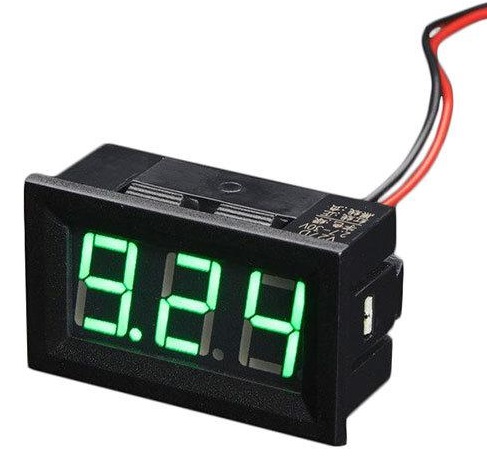

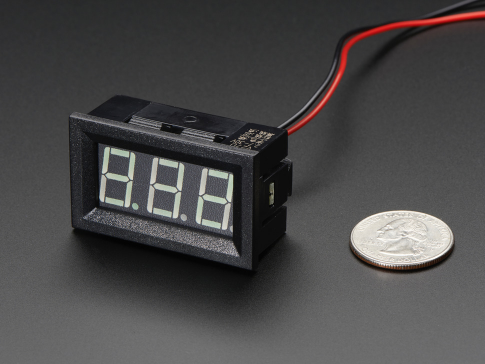

Put a voltage meter anywhere with this very handy display. This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up!
09-00000575
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Part Number: ADA575
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.80
Χωρίς ΦΠΑ 7.90
+

ΠΕΡΙΓΡΑΦΗ

Put a voltage meter anywhere with this very handy display. This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up!

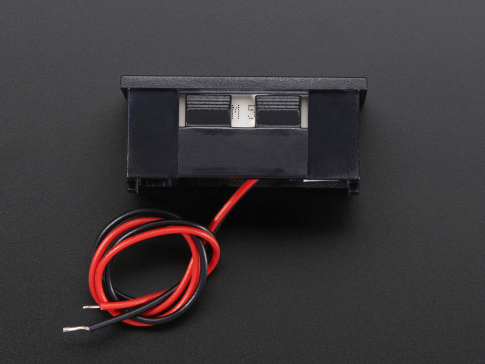

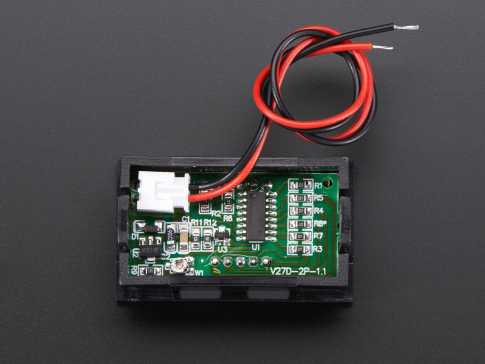

Simply connect the red wire to the positive supply, and black to negative ground. The display has a microcontroller that will read the voltage, compare it to a stable reference and display the voltage with 0.1V precision on a 3-digit 0.56" tall 7-segment display. It works from 4.5V up to 30V and is reverse-polarity protected so it will be good for nearly any electronic project! The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid green, which we found very readable. To mount to your enclosure, simply cut a 45.5mm × 26.5mm rectangle and snap it in.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Part Number:
ADA575
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Τύπος Οργάνου:
  • Βολτόμετρο
Είδη μέτρησης:
  • DC τάση (V)
Εύρος μέτρησης DC τάσης:
4.5-30V

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 4.5V to 30V DC measurements
  • 0.1V precision
  • 3-4mA draw
  • Green LED display
  • Reverse polarity protected
