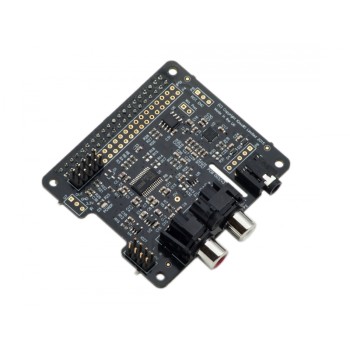

Pi-DAC+ Full-HD Audio Card

The Pi-DAC+ corresponds to the Raspberry Pi Foundation's HAT specification, includes the HAT auto configure EEPROM, camera and display cut outs, mounting holes and form factor.
06-00018709
Gross Weight: 0kg
Company: IQaudIO
Made in: UK
Out of Stock
Product out of stock
No stock in retail store
44.90
Without VAT 36.21

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

The best sounding audio accessory for the Raspberry Pi [A+ or B+ or RPi2]

The IQaudIO Pi-DAC+ HAT Audio card for the Raspberry Pi delivers outstanding sonic performance and full-HD (24/192) audio capability with build-in hardware volume control through the standard Linux audio APIs (ALSA) using the Raspberry Pi’s I2S digital audio signals delivering much lower CPU usage and vastly improved audio quality vs. USB audio cards.

The Pi-DAC+ corresponds to the Raspberry Pi Foundation's HAT specification, includes the HAT auto configure EEPROM, camera and display cut outs, mounting holes and form factor.

NO SOLDERING REQUIRED, simply "FIT AND ENJOY."

The IQaudIO Pi-DAC+ is one of the first HAT compliant accessories on the market.

Designed to deliver the best audio performance from the Raspberry Pi B+/RPi2, fit within the Pi's form factor and provide additional access to many of the Pi B+'s 40way I/O signals.

The Pi-DAC+’s Phono/RCA connectors have an integrated mounting hole bringing increased rigidity when used in an case / enclosure reducing the wear and tear on the Raspberry Pi’s headers due to flexing. This along with the Pi-DAC+’s HAT mounting holes, aligned to that of the Raspberry Pi's, delivers a rock solid pairing with no concern of the audio card becoming disconnected from the Raspberry Pi during long term use.

The Pi-DAC+ provides the support for additional pin-headers providing increased flexibility to your project and easy connection to our other products. Exposed signals include Audio L+R out, amp-mute, headphone out, and the majority of the Raspberry Pi's 40way connector. Please note that The Pi-DAC+ uses GPIO22 as amp-mute.

Use raw Linux, Volumio, Raspbmc, RuneAudio, MDP or similar and listen to internet radio, your own digital music library, or streaming music services – all in magnificent audio quality. The IQaudIO Pi-DAC+ easily supports 24-bit / 192kHz file formats but is equally at home with lower quality MP3s bringing your music alive sonically.

The IQaudIO Pi-DAC+ is suitable for the latest Raspbery Pi A+/B+ AND RPi2. However, it is not compatible with older Raspberry Pi A and Model B.

The Pi-DAC+ is supplied with all mounting hardware We also have a range of Acrylic project cases for the Pi and Pi-DAC+

SPECIFICATIONS

HAT Type:
  • Audio
Raspberry Compatible:
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B

SPECIFICATIONS

  • Fully HAT compliant accessory; EEPROM, mounting holes, WITH camera & screen flat flex cut outs
  • Full-HD audio – up to 24-bit/192kHz playback
  • Integrated hardware volume control (via ALSA), full 2v RMS
  • Built in High quality audio headphone amplifier (TI TPA6133A)
  • Class leading audio; 112db SNR, and THD of 0.0019%
  • Audiophile TI Burr Brown 32-bit/384kHz DAC (TI PCM5122)
  • Advanced ESD protection
  • Uses the digital I2S audio signals to reduce CPU load over USB audio solutions
  • Raspberry Pi powered, no external power requirements
  • Industry standard audio quality Phono/RCA connectors
  • Fully built and tested Raspberry Pi accessory
  • Designed and manufactured in the UK
