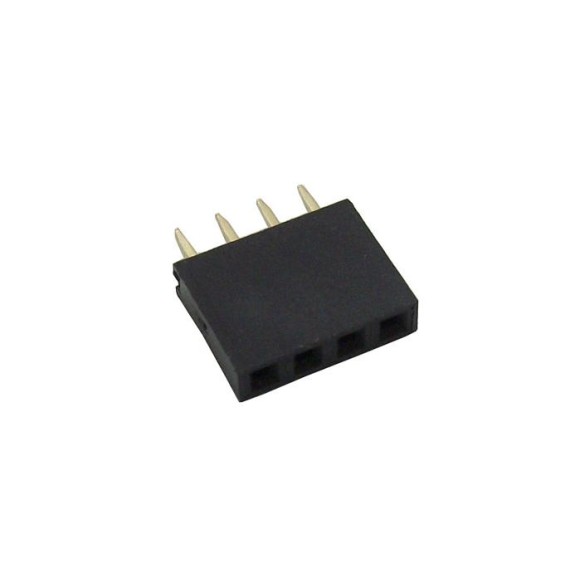

Pin Header 1x4 Female 2.54mm

by OEM
Specifications : Connector type female Number of pins 4 Spatial orientation straight Contacts pitch 2.54mm Electrical mounting THT...
05-00011900
Gross Weight: 0kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
Available in store
0.0500
Without VAT 0.04

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Specifications:

  • Connector type female
  • Number of pins 4
  • Spatial orientation straight
  • Contacts pitch 2.54mm
  • Electrical mounting THT
  • Type of pin configuration 1x4
  • Contact plating gold plated
  • Leads dimensions len. 3.2mm
  • Maximum current 3A
  • Max. contact resistance: 30mΩ
  • Height 8.5mm
  • Operating temperature -55...105°C

Documents:

SPECIFICATIONS

Connector Type:
  • Female
Contacts Pitch:
  • 2.54mm
Number of Pins:
4 Pin
Number of Row:
Single
