PiTFT Plus 320x240 2.8" TFT + Capacitive Touchscreen Mini Kit - Pi 2 and Model A+ / B+

It features a 2.8" display with 320x240 16-bit color pixels and a capacitive touch overlay.
09-00002423
Company: Adafruit
Made in: USA
In Stock
Ships in 24 Hours
No stock in retail store
55.30
Without VAT 44.60
+
WISHLIST COMPARE

DESCRIPTION

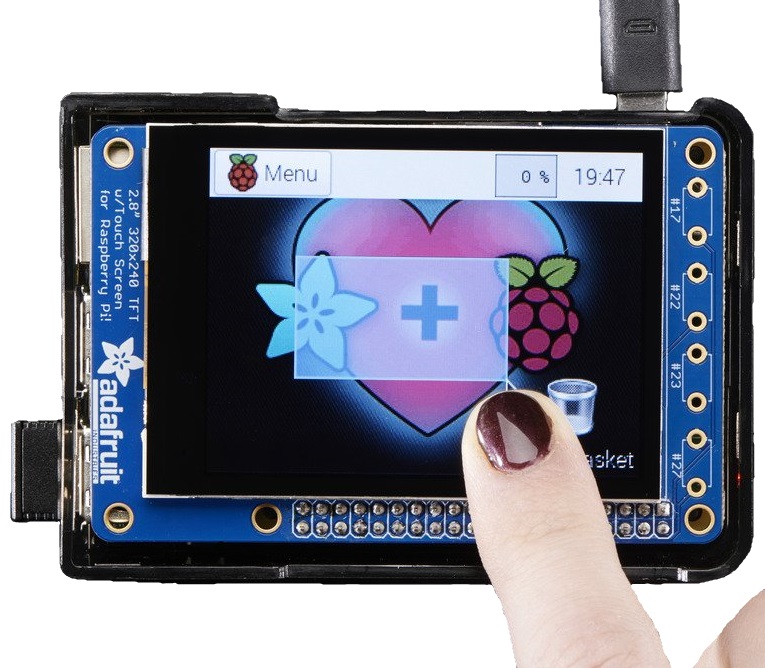

Is this not the cutest little display for the Raspberry Pi? It features a 2.8" display with 320x240 16-bit color pixels and a capacitive touch overlay. That's right, instead of a resistive touchscreen, which requires a fingernail or stylus, you can now use a fingerpad. The screen looks much nicer, with a black bezel and glass overlay.

This updated design fits perfectly onto the Pi Model A+, B+, or Pi 2! Works just like the Model B version, but now matches the outline of the Raspberry Pi 2 and Model B+. It also has all 40 pins GPIO pins brought out so you can connect a 40-pin GPIO cable underneath.

The display and touchscreen uses the hardware I2C Pins (SDA & SCL), SPI pins (SCK, MOSI, MISO, CE0) as well as GPIO #25 and #24. All other GPIO are unused and you can still share the I2C pins with sensors, LED drivers, etc. Since we had a tiny bit of space, there's 4 spots for optional slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button. See below for the link to get the optional tact switches, they're not included.

Use it for console access or easily pop up X11 onto the PiTFT for a mini monitor, although its rather small at 320x240. Instead, we recommend using PyGame or other SDL-drawing programs to write onto the frame buffer.

SPECIFICATIONS

Type:
LCD/TFT
Display Size:
2.8"
Resolution:
320x240
Aspect Ration:
  • 4:3
Display Color:
Colorful
Touchscreen:
Capacitive
Interface:
  • SPI

Notes

Dimensions

  • Screen Dimensions: 50mm x 69mm x 4mm / 2" x 2.7" x 0.16"
  • PCB Dimensions: 56mm x 85mm x 11mm / 2.2" x 3.3" x 0.4"
  • Weight: 47g
