PrimaSelect NylonPower Glass Fibre Filament - 1.75mm - 500g spool - Natural

SELECT NylonPower Glass Fiber  is the latest generation of high performance material for your 3D Printer. Our SELECT NylonPower   is based on Nylon 12 and...
26-00023425
Company: 3D Prima
Made in: EU
Out of Stock
Product out of stock
No stock in retail store
59.90
Without VAT 48.31

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

SELECT NylonPower Glass Fiber is the latest generation of high performance material for your 3D Printer. Our SELECT NylonPower is based on Nylon 12 and is reinforced with 16 % glass fibers. This makes for an extremely tough filament that is perfect for printed parts that can be used in the automotive industry, drones and RC parts. The glass fibers make it a bit softer and not as rigid as the version with carbon fibers.

SELECT NylonPower is a very useful material that has very unique properties. Mixed with small, chopped glass fiber strands, SELECT NylonPower filament offers incredible strength, structure, and great interlayer adhesion. The finished parts are very hard and rigid or flexible depending on the way you print it. It is very useful if you need an object with high strength to weight ratio. If you print glass fiber reinforced nylon with less infill and thinner walls you can expect a more flexible part. SELECT NylonPower requires a heated bed, set to 60-70˚C to get a good first layer adhesion.

Due to the abrasive nature of SELECT NylonPower we recommend that you use a hardened steel nozzle for this filament. Using a regular brass nozzle isn´t a problem but it will wear out the nozzle in a short time.

SELECT NylonPower sticks on glass coated with adhesive spray or glue stick.

  • Weight and spool

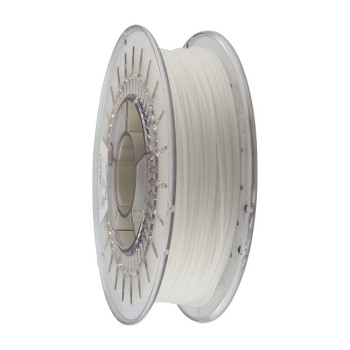

    Each spool come with 500 grams of high quality filament. NylonPower comes on a clear spool with a powerful desiccant to avoid moister.
  • Perfect diameter tolerance
    NylonPower is controlled during the whole manufacturing process. This ensures that you have a filament with a diameter tolerance of +/-0.05 mm.
  • Spooling
    We put great effort to make every spool perfect. This is to make you comfortable knowing that the filament won´t tangle on the spool.
  • Easy to print
    The fibers that are mixed with nylon makes this material very easy to print on most printers. We do, however, recommend a hardened nozzle.

Tips and trick:

Take care of your filament:

Thanks to the glass fiber in NylonPower it reduces the amount of water that can be absorbed.
What you need to keep in mind is that NylonPower is a Nylon filament from the beginning, so you need to make sure that the filament is completely dry before using it. NylonPower is shipped in a vacuum sealed bag with desiccant so the first print shouldn´t post any problem.
In case of exposure for humidity we strongly recommend that you dry your spool of NylonPower before you begin to print. To do this, just place the whole spool in the oven at 80°C for 5 to 7 hours. Then you have dried you spool and can start a new print again.

How to print:

NylonPower requires a temperature of 250°C - 265°C to extrude correctly. The filament can be printed on most printers, but we highly recommend that you use an all-metal setup for your extruder. NylonPower can be printed at lower temperatures but please keep in mind that you will not get the same strength in the finished parts.
This filament contains glass fibers, so it is very abrasive for your nozzle. We HIGHLY recommend that you use a hardened steel nozzle for this filament as a regular brass nozzle will wear out in a very short time.
Larger nozzles of 0.6 or 0.8 creates very strong prints and lower the risks of clogging up the nozzle. But it ok to use with a 0.4 mm nozzle as well.

NylonPower does not stick well to PEI, BuildTak or similar surfaces. Glass is the best surface to use coated with MagiGoo, PrintaFix, Glue stick or similar. When printing with NylonPower you should not use any cooling fans.

SPECIFICATIONS

Color:
  • Natural
Diameter:
1.75mm
Material :
  • Nylon
Printing Temperature:
250-265°C
Reel:
  • 0.500kg
Tolerance:
±0,05mm

Notes

  • A heated surface is recommended for optimal printing between 60-70 ˚C.
  • For the manufacture of PrimaSelect, we use state-of-the-art laser counters for optimum roundness.

EXTRA SPECIFICATIONS

  • Essential Data:
    • Material: Glass fiber reinforced Nylon
    • Diameter: 1.75mm
    • Tolerance: ± 0.05 mm
    • Heated build platform required: Yes, 60-70° C
    • Print Temperature: 250-265° C
    • Recommended Print Speed: 40 mm/s
    • Weight Filament: 500 grams
    • Spool Size: 200x55 mm
    • Spool Hub Diameter: 53 mm
  • Technical data
    Property Test method Value
    Density ISO 1183 1,00 g/cm3
    Melting point ISO 11357 180°C
    Tensile Modulus ISO 527 4000 MPa
    Tensile Strength ISO 527 95 MPa
    Impact strength ISO 179/2-1eU 80 kJ/m2
    Shore hardness ISO 2039-1 77 MPa
    Heat deflection temp. HDT/A ISO 75 160°C
    Thermal expansion coefficient ISO 11359 0,1 10-4/K
    Max usage Temp. long term ISO 2578 90-120°C
    Max usage Temp. short term ISO 2578D 150°C
    Specific volume resistivity IEC 60243 1011 Ωm
    Flammability ISO 1210 HB
    Linear mould shrinkage ISO 294 0,5
