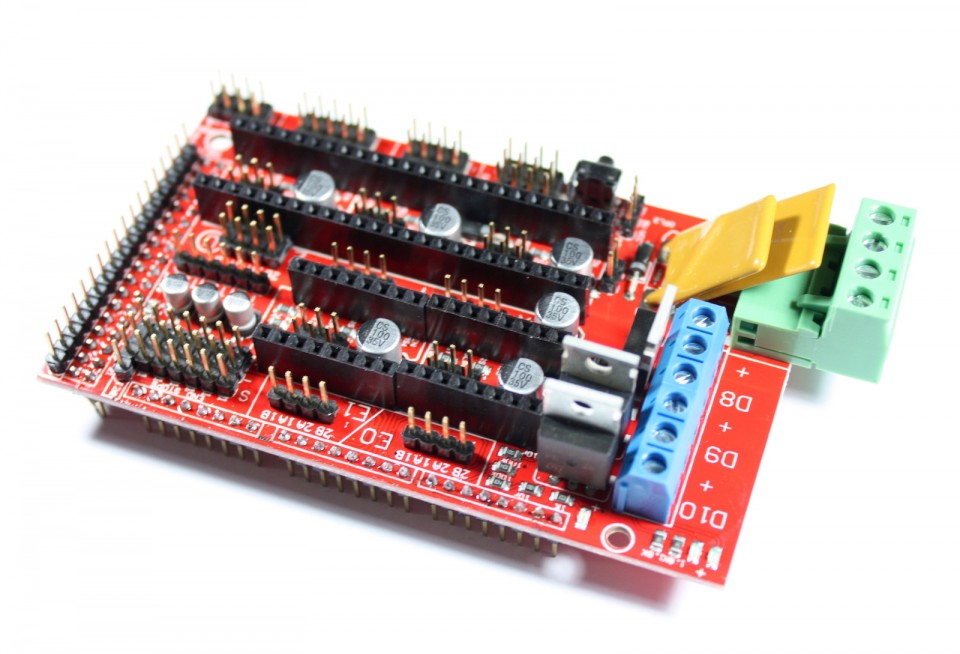

RAMPS RepRap Shield for Arduino Mega

by OEM
Ramps is short for reprap Arduino Mega shield, it is mainly designed for the purpose of using stepper driver board (similar to 4988 driver board).
19-00017101
Gross Weight: 0.1kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
Low stock in store
8.90
Without VAT 7.18

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Ramps is short for reprap Arduino Mega shield, it is mainly designed for the purpose of using stepper driver board (similar to 4988 driver board). Ramps can only work when connected to mainboard Mega 2560 and 4988/DRV8825. Great compatibility with most 3Dprinter (all reprap-model such as pursa i2 and i3).

Note: This Board is only the shield, Stepper Drivers and mainboard are not included.

Specifications:

  • Standard interfaces (as that of extruder)
  • Reserved GCI like I2C and RS232
  • MOSFET 3 MOSFET are applied to the heater/ fan and thermistor circuit.
  • Another 5A added to protect the component parts.
  • An 11A fuse is added to the hotbed
  • Support 5 stepper drive board
  • The adoption of Pin Header as pololu makes it more convenient to repair or change.
  • I2C and SPI are reserved for expanding
  • All the MOSFET can be controlled by PWM
  • Use the interface of servo motor to adjust the level of printing platform automatically.
  • Adding a SD module for SD ramps module.
  • LED can indicate the status of the heater (the open and close of MOS).
  • 2 stepper motor for Z axis in parallel.
  • Expandable to control other accessories.
