Αναγνώστης RFID ID-20LA (125 kHz)

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects.
03-00011828
Ογκομετρικό βάρος: 0.04kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
50.30
Χωρίς ΦΠΑ 40.56
+

ΠΕΡΙΓΡΑΦΗ

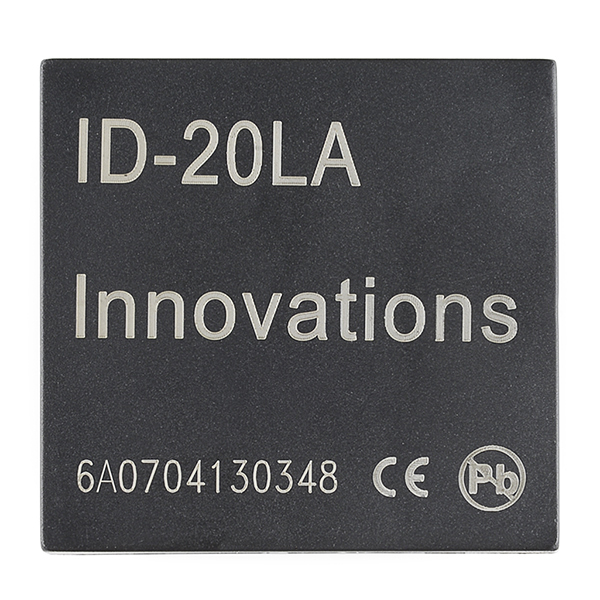

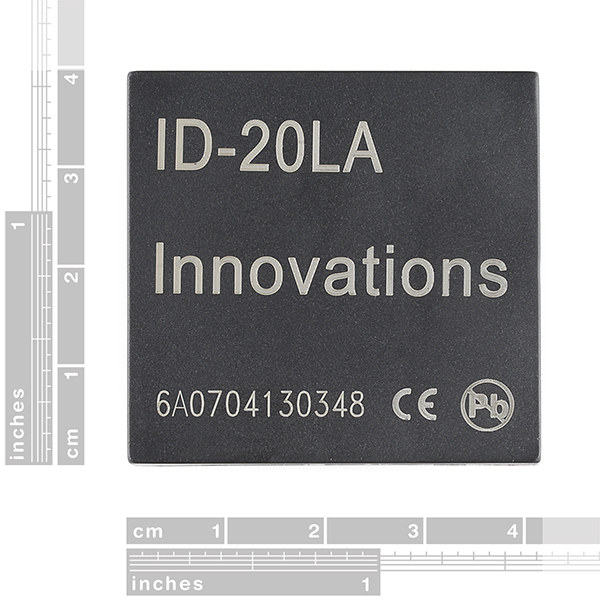

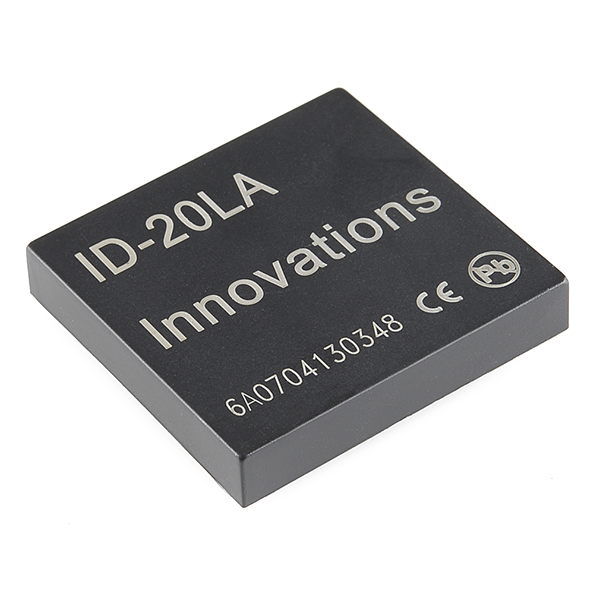

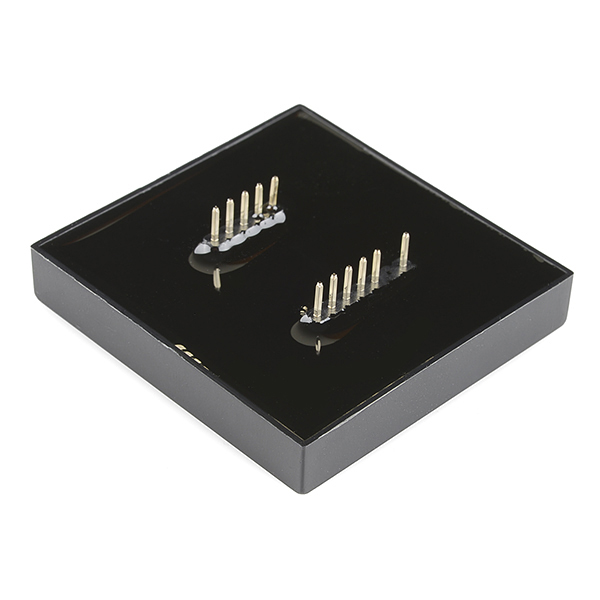

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-20LA, a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Μικτό Βάρος:
0.0404kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • RFID
Τυπική Τάση Εισόδου:
  • 5.5VDC
Ρεύμα Λειτουργίας:
75mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • UART

  • The new ID-20LA is essentially the same as the older ID-20, but has a lower input voltage.

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 2.8 - 5V supply
  • 125kHz read frequency
  • EM4001 64-bit RFID tag compatible
  • 9600bps TTL and RS232 output
  • Magnetic stripe emulation output
  • Read range of 180mm
