SparkFun ESP32 Thing Motion Shield

The SparkFun ESP32 Thing Motion Shield is a versatile, motion-sensing addition to our ESP32 Thing. With the Motion Shield’s onboard LSM9DS1 IMU, small...
03-00014430
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SparkFun Electronics
Part Number: DEV-14430
Εξαντλημένο
Το προϊόν δεν είναι διαθέσιμο
Χωρίς απόθεμα στο φυσικό κατάστημα
30.20
Χωρίς ΦΠΑ 24.35

Συναινώ ώστε η εταιρεία (GRobotronics) να προσθέσει την διεύθυνση ηλεκτρονικού μου ταχυδρομείου στην λίστα ώστε να λάβω ενημέρωση όταν το προϊόν θα είναι ξανά διαθέσιμο. Μόλις το προϊόν γίνει ξανά διαθέσιμο θα λάβω αυτόματα ενημέρωση στο email αυτό και αμέσως θα αφαιρεθεί από την συγκεκριμένη λίστα.

Το email σου θα χρησιμοποιηθεί αποκλειστικά για τον σκοπό αυτό και καμία άλλη ενημέρωση δεν θα λάβεις. Θα είναι ορατό μόνο από συγκεκριμένους εξουσιοδοτημένους υπαλλήλους της εταιρείας.

Έχετε το δικαίωμα σε περίπτωση κατά την οποία θεωρείτε ότι η επεξεργασία που γίνεται δεν είναι σύμφωνη με τα ανωτέρω να αναζητείτε την προστασία της Αρχής Προσωπικών Δεδομένων και να ζητήσεις να διαγράψουμε ή να μεταβάλλουμε τα δεδομένα σου. Είμαστε υποχρεωμένοι σύμφωνα με τον κανονισμό της ΕΕ για την Προστασία των Γενικών Προσωπικών Δεδομένων να σε ενημερώσουμε για αυτό το δικαίωμα. Έχετε την δυνατότητα να επικοινωνείτε όποτε επιθυμείτε με την εταιρεία ώστε να ενημερωνόσαστε σχετικά με τα προσωπικά σας δεδομένα στο email [email protected]

ΑΓΑΠΗΜΕΝΑ ΣΥΓΚΡΙΣΗ

ΠΕΡΙΓΡΑΦΗ

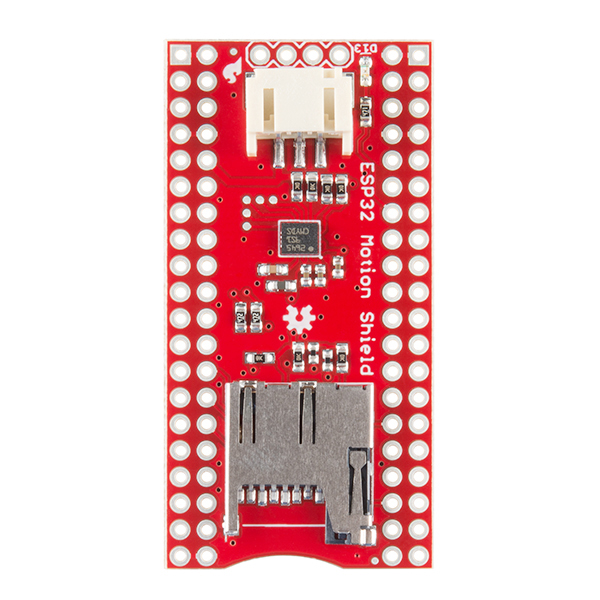

The SparkFun ESP32 Thing Motion Shield is a versatile, motion-sensing addition to our ESP32 Thing. With the Motion Shield’s onboard LSM9DS1 IMU, small movement changes can easily be detected, while larger movements and time traveled can be detected with the addition of a GPS module via a large JST port. In addition, we have added breakout pins to attach any serial device, as well as a microSD card slot to log all of your data. All you need to do is solder on headers, and your ESP32 Thing Motion Shield will be ready to detect any type of movement!

The LSM9DS1 is one of only a handful of ICs that can measure three key properties of movement — angular velocity, acceleration and heading — in a single IC. By measuring these three properties, you can gain a great deal of knowledge about an object’s movement and orientation. The LSM9DS1 measures each of these movement properties in three dimensions. That means it produces nine pieces of data: acceleration in x/y/z, angular rotation in x/y/z and magnetic force in x/y/z.

Each sensor in the LSM9DS1 onboard the Thing Motion Shield supports a wide spectrum of ranges: the accelerometer’s scale can be set to ± 2, 4, 8 or 16 g; the gyroscope supports ± 245, 500 and 2000 °/s; and the magnetometer has full-scale ranges of ± 4, 8, 12 or 16 gauss.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SparkFun Electronics
Part Number:
DEV-14430
Μικτό Βάρος:
0.001kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels
  • ±2/±4/±8/±16 g linear acceleration full scale
  • ±4/±8/±12/±16 gauss magnetic full scale
  • ±245/±500/±2000 dps angular rate full scale
  • SPI / I2C serial interfaces
  • Operating Voltage: 3.3V
  • microSD Card Slot
  • JST Connector for GPS UART
