SparkFun nRF52832 Breakout

The nRF52832 is Nordic Semiconductor?s latest multiprotocol radio System on Chip (SoC). It?s half microcontroller, with a list of features including 32...
03-00013990
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SparkFun Electronics
Part Number: WRL-13990
Χώρα Προέλευσης: ΗΠΑ
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
Από 27.21
13.61
Χωρίς ΦΠΑ 10.97
Κέρδος: 13.61 (50%)
Σε Προσφορά
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 25.85

ΠΕΡΙΓΡΑΦΗ

The nRF52832 is Nordic Semiconductor?s latest multiprotocol radio System on Chip (SoC). It?s half microcontroller, with a list of features including 32 configurable I/O pins, SPI, I2C, UART, PWM, ADC?s, 512kB flash, and 64kB RAM. And it?s half 2.4GHz multiprotocol radio, supporting Bluetooth Low Energy (BLE), ANT, and Nordic?s proprietary 2.4GHz ultra low-power wireless communication ? it even features on-chip NFC tag support.

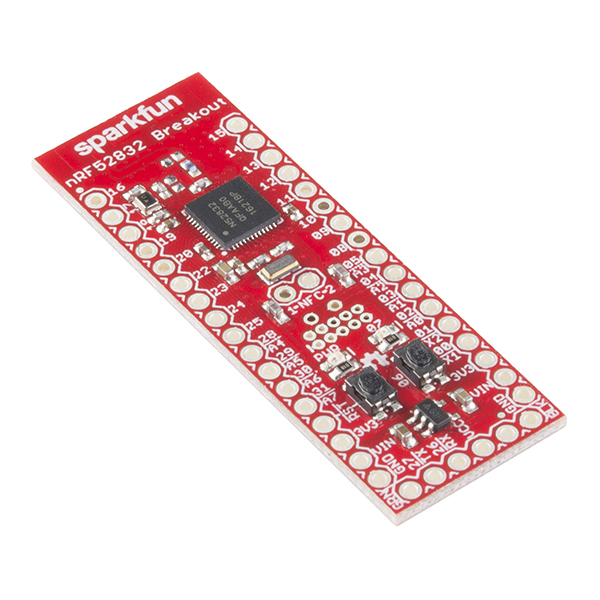

SparkFun?s nRF52832 Breakout provides easy access to all of the chip?s features. It breaks out all of the nRF52?s I/O pins, provides a 32.768kHz RTC crystal, a user-programmable button and LED, and a trace antenna to send and receive those 2.4GHz transmissions. Plus, to make the chip as easy-to-flash as possible, the breakout comes pre-programmed with a serial bootloader.

Nordic?s nRF52832 is an SoC that combines an ARM Cortex-M4F microprocessor with a 2.4GHz multiprotocol radio. In addition to providing access to all of the chip?s I/O pins, the breakout board includes a handful of external components. The nRF52832 can operate on a power supply between 1.7 and 3.6V. The board also includes a 3.3V regulator with a maximum input of 6V, if you want to power the board with batteries or a regulated wall supply.

Get Started with the nRF52832 Breakout Guide

Features:

  • Bluetooth Low Energy (BLE), ANT and proprietary 2.4GHz radio support
  • 32-bit ARM Cortex-M4F Processor
  • Easy access to all 32 GPIO
  • SPI, I2C, UART, PWM and ADC I/O support
  • User-programmable LED and button
  • 32.768kHz RTC Crystal
  • Pre-programmed serial bootloader
  • Arduino board definition available!

Documents:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SparkFun Electronics
Part Number:
WRL-13990
Μικτό Βάρος:
0.004kg
Χώρα Προέλευσης:
ΗΠΑ
Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
