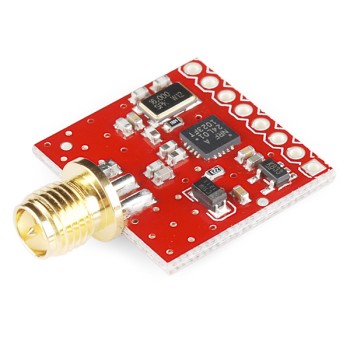

SparkFun Transceiver Breakout - nRF24L01+ (RP-SMA)

The nRF24L01 module is the latest in RF modules from SparkFun. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the nRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice!

03-00000705
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: SparkFun Electronics
Χώρα Προέλευσης: ΗΠΑ
Εξαντλημένο
Το προϊόν δεν είναι διαθέσιμο
Χωρίς απόθεμα στο φυσικό κατάστημα
29.90
Χωρίς ΦΠΑ 24.11

Συναινώ ώστε η εταιρεία (GRobotronics) να προσθέσει την διεύθυνση ηλεκτρονικού μου ταχυδρομείου στην λίστα ώστε να λάβω ενημέρωση όταν το προϊόν θα είναι ξανά διαθέσιμο. Μόλις το προϊόν γίνει ξανά διαθέσιμο θα λάβω αυτόματα ενημέρωση στο email αυτό και αμέσως θα αφαιρεθεί από την συγκεκριμένη λίστα.

Το email σου θα χρησιμοποιηθεί αποκλειστικά για τον σκοπό αυτό και καμία άλλη ενημέρωση δεν θα λάβεις. Θα είναι ορατό μόνο από συγκεκριμένους εξουσιοδοτημένους υπαλλήλους της εταιρείας.

Έχετε το δικαίωμα σε περίπτωση κατά την οποία θεωρείτε ότι η επεξεργασία που γίνεται δεν είναι σύμφωνη με τα ανωτέρω να αναζητείτε την προστασία της Αρχής Προσωπικών Δεδομένων και να ζητήσεις να διαγράψουμε ή να μεταβάλλουμε τα δεδομένα σου. Είμαστε υποχρεωμένοι σύμφωνα με τον κανονισμό της ΕΕ για την Προστασία των Γενικών Προσωπικών Δεδομένων να σε ενημερώσουμε για αυτό το δικαίωμα. Έχετε την δυνατότητα να επικοινωνείτε όποτε επιθυμείτε με την εταιρεία ώστε να ενημερωνόσαστε σχετικά με τα προσωπικά σας δεδομένα στο email dpo@grobotronics.com

ΑΓΑΠΗΜΕΝΑ ΣΥΓΚΡΙΣΗ

ΠΕΡΙΓΡΑΦΗ

The nRF24L01 module is the latest in RF modules from SparkFun. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the nRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice!

This board features a reverse polarized SMA connector for maximum RF range. Please remember, you will need a mating RP-SMA 2.4GHz antenna (listed below).

Because of lower costs and better performance, we recommend the nRF24L01 over the original nRF2401A modules.

This unit has an onboard 3.3V regulator and has 5V tolerant IO lines. This makes it very flexible, but you will need to power the unit with 3.3V or higher voltage for the regulator to perform properly.

Note: We now populate these boards with the nRF24L01+. The ‘+’ version of the IC has improved range, sensitivity, and data rates. The command set is backward compatible with the original nRF24L01.

Features:

  • On-board 3.3V LDO Regulator (3.3 to 7V supply allowed)
  • Reverse Polarized SMA Connector for external 2.4 GHz Antenna
  • 100m Range at 250kbps
  • 250kbps to 2Mbit Data Rate
  • Auto Acknowledge
  • Auto Re-Trasmit
  • Multiceiver - 6 Data Pipes
  • 32 Byte seperate TX and RX FIFOs
  • 5V tolerant input pins
  • Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)
  • Minimum number of external components
  • Pins broken out : VCC, CE, CSN, SCK, MOSI, MISO, IRQ, GND
  • Lots of application notes and support on Nordic Semiconductor Website

Documents:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
SparkFun Electronics
Πρωτόκολλο:
  • Nordic
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
ΗΠΑ
