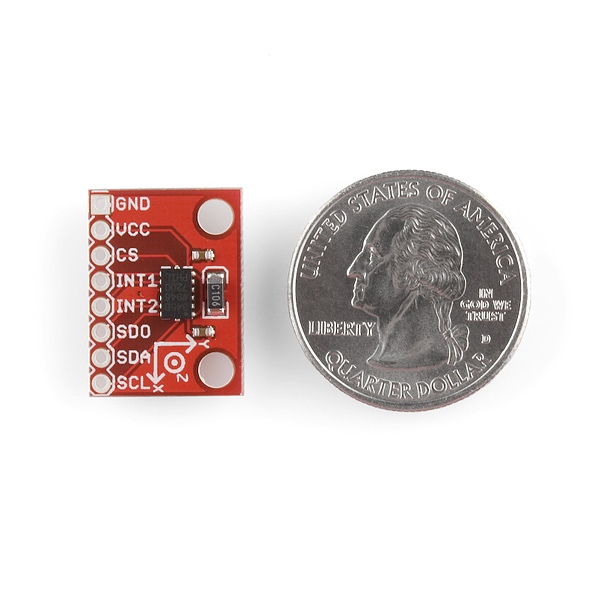

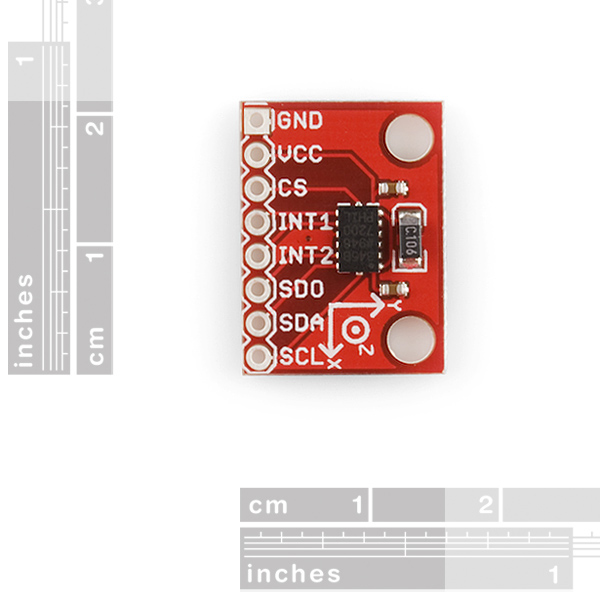

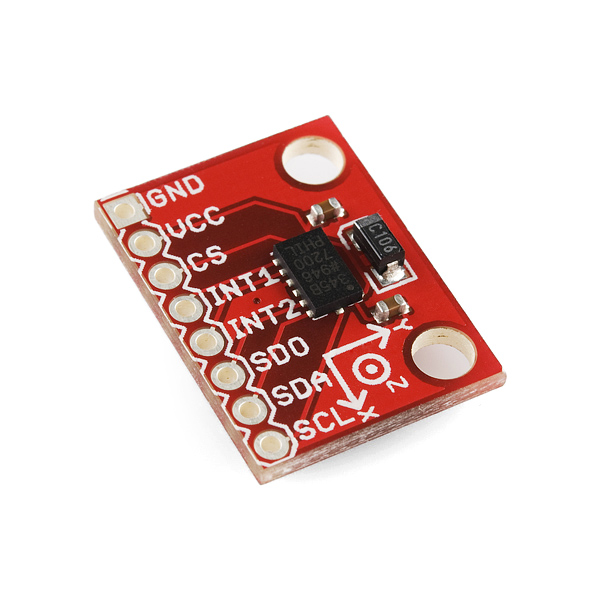

SparkFun Triple Axis Accelerometer Breakout - ADXL345

The ADXL345 is a small, thin, low power, 3-axis MEMS accelerometer with high resolution (13-bit) measurement at up to +-16 g.

03-00009836
Gross Weight: 0kg
Company: Sparkfun
Made in: USA
In Stock
Ships in 24 Hours
No stock in retail store
From 21.00
18.43
Without VAT 14.86
Profit: 2.57 (12%)
On sale
+
WISHLIST COMPARE

DESCRIPTION

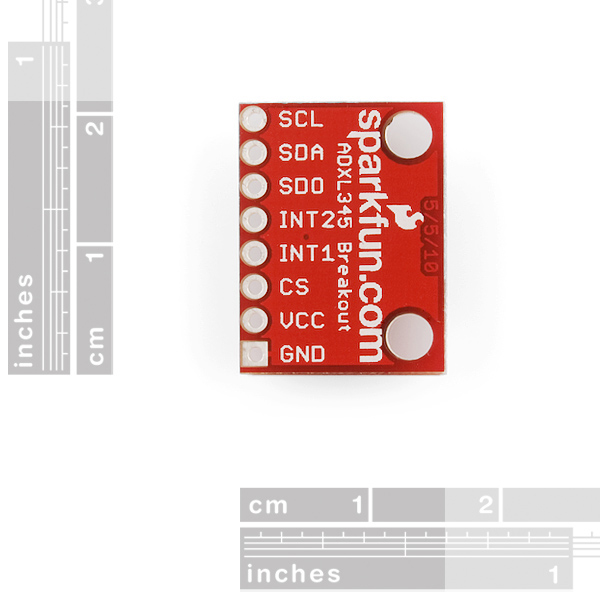

This new version adds 2 standoff holes as well as an extra decoupling capacitor. The ADXL345 is a small, thin, low power, 3-axis MEMS accelerometer with high resolution (13-bit) measurement at up to +-16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.

The ADXL345 is well suited to measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0 degrees;.

Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins. An integrated, patent pending 32-level first in, first out (FIFO) buffer can be used to store data to minimize host processor intervention. Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.

Not sure which accelerometer is right for you? OurAccelerometer and Gyro Buying Guide might help!

SPECIFICATIONS

Sensor Type:
  • Accelerometer
Typical Input Voltage:
  • 3.3VDC
Oparating Current:
40uA
Interface:
  • Digital
Communication Protocol:
  • I2C
  • SPI

EXTRA SPECIFICATIONS

  • 2.0-3.6VDC Supply Voltage
  • Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
  • Tap/Double Tap Detection
  • Free-Fall Detection
  • SPI and I2C interfaces
