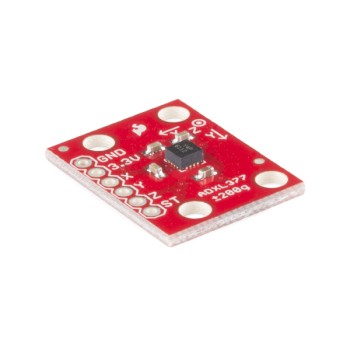

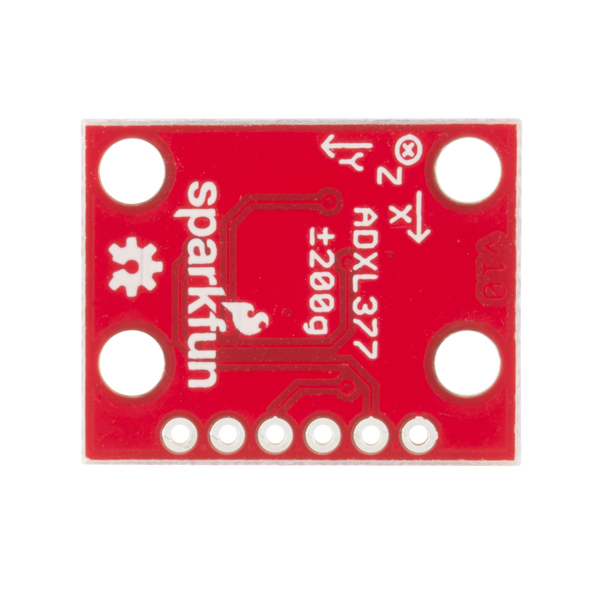

SparkFun Επιταχυνσιόμετρο 3 Αξόνων - ADXL377

The ADXL377 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned analog voltage outputs that has a full-scale range of ±200g for measuring more extreme changes in motion, shock or vibration.
03-00012803
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: SparkFun Electronics
Part Number: SEN-12803
Χώρα Προέλευσης: ΗΠΑ
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
34.20
Χωρίς ΦΠΑ 27.58
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 32.49

ΠΕΡΙΓΡΑΦΗ

The ADXL377 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned analog voltage outputs that has a full-scale range of ±200g for measuring more extreme changes in motion, shock or vibration. This board has broken out all the pins you’ll need to get the necessary data from the accelerometers. The breakout is perfect for applications like concussion and head trauma detection or high force event detection.

Getting the ADXL377 Breakout set-up is easy. Simply supply the accelerometer with power (3.3V and GND), then hookup the X, Y, and Z lines of the sensor to ADC pins on your chosen development board and you will be good to go. Bandwidths can even be selected to suit the needed application, with a range of 0.5 Hz to 1600 Hz for X and Y axes and a range of 0.5 Hz to 550 Hz for the Z axis.

It should be noted that this breakout has a maximum voltage of 3.6V. Fortunately, you won’t need a lot of power to make the accelerometers work. In normal operating mode they typically draw about 300 µA.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
SparkFun Electronics
Part Number:
SEN-12803
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
ΗΠΑ
Τύπος Αισθητήρα:
  • Επιταχυνσιόμετρο
Τυπική Τάση Εισόδου:
  • 3.3VDC
Ρεύμα Λειτουργίας:
300uA
Διασύνδεση:
  • Αναλογική
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 1.8V - 3.6V
  • Typical Current: 300 μA
  • Range: ±200g
  • 3-axis sensing
  • Bandwidth adjustment with a single capacitor per axis
  • 4x Mounting Hole
