SparkFun USB LiPoly Charger - Single Cell

The USB LiPo Charger is a basic charging circuit that allows you to charge 3.7V LiPo cells at a rate of 500mA or 100mA.
03-00012711
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: SparkFun Electronics
Part Number: PRT-12711
Χώρα Προέλευσης: ΗΠΑ
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
22.10
Χωρίς ΦΠΑ 17.82
+

ΠΕΡΙΓΡΑΦΗ

If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The USB LiPo Charger is a basic charging circuit that allows you to charge 3.7V LiPo cells at a rate of 500mA or 100mA. It is designed to charge single-cell Li-Ion or Li-Polymer batteries.

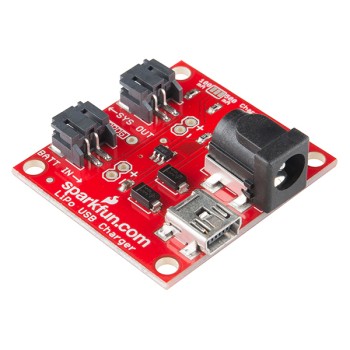

The board incorporates a charging circuit, status LED, selectable solder jumper for 500mA or 100mA charging current, external LED footprint, USB input, two pre-installed JST connectors for SYS OUT and BATT IN, and (back by popular demand) a barrel jack connector.

There is also a ‘SYS OUT’ with a pre-installed JST connector which allows you to connect the charging circuit directly to your project so you don’t need to disconnect the charger each time you want to use it.

Documents:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
SparkFun Electronics
Part Number:
PRT-12711
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
ΗΠΑ
Χημική Σύσταση:
  • Lithium-Ion Polymer (Li-Po)
