Spur Gear Motor w/Encoder 76 RPM

17-99712230
Company: Servocity
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
33.90
Without VAT 27.34
+
WISHLIST COMPARE

SPECIFICATIONS

Μotor Diameter:
37mm
Voltage (Range):
9 - 12Volt
Current (Stall):
20.7A
Speed:
76RPM
Torque:
144kg.cm
Gearmotor Style:
Precision Spur
Gear Material:
Metal
Gearbox Ratio:
  • 107:1
Encoder:
Yes

Notes

  • Stalling this gear motor could cause gear damage.

EXTRA SPECIFICATIONS

  • Speed (No Load)*: 76 rpm
  • Current (No Load)*: 0.5 A
  • Current (Stall)*: 20.7 A
  • Torque (Stall)*: 2,000 oz-in
  • Gear Ratio: 106.95:1
  • Gear Material: Metal
  • Gearbox Style: Spur
  • Wire Length: 18.50" (470 mm)
  • Product Weight: 12.20 oz (345.86 g)
  • Encoder: Cycles Per Revolution (Motor Shaft): 7
  • Encoder: Cycles Per Revolution (Output Shaft): 748.65
  • Encoder: Countable Events Per Revolution (Motor Shaft): 28
  • Encoder: Countable Events Per Revolution (Output Shaft): 2,994.6
  • Encoder Type: Relative, Quadrature
  • Encoder Sensor Type: Magnetic (Hall Effect)
  • Encoder Sensor Input Voltage Range: 5 V
  • Encoder Sensor Output Pulse Amplitude: ~= Sensor Input Voltage

*At Nominal Voltage

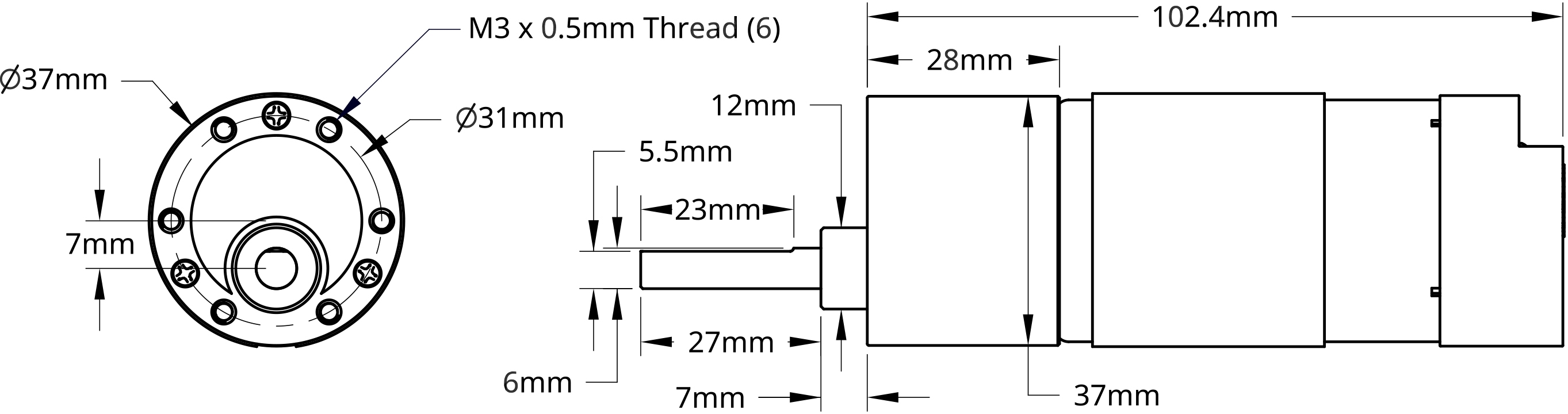

Dimensions

DOCUMENTS
