Standard Hub Shaft ServoBlock (25T Spline)

ServoBlocks increase a servo’s load-bearing capabilities by helping to isolate the lateral load from the servo spline and case. The extreme versatility of...
17-00637112
Volumetric weight: 0.04kgs
Company: Servocity
Out of Stock
Product out of stock
No stock in retail store
33.50
Without VAT 27.02

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

ServoBlocks increase a servo’s load-bearing capabilities by helping to isolate the lateral load from the servo spline and case. The extreme versatility of ServoBlocks allow users to create complex, extremely rigid, structures with ease using standard size servos. The ½” aluminum hub shaft provides multiple mounting options using 6-32 screws. The robust 6061 T-6 aluminum framework acts as a servo exoskeleton, greatly enhancing the mechanical loads the servo can withstand. Our new .770” hub pattern is repeated throughout the framework to allow endless attachment options. Compatible with most standard size servos with a 25T spline.

SPECIFICATIONS

Servo Standar :
25T (Futaba/Feetech)

Notes

  • Kit comes unassembled, servo not included. If you want to buy servo click HERE.

EXTRA SPECIFICATIONS

  • Servo Spline Compatibility: 25T spline
  • Servo Size Compatibility: Standard Size Servo

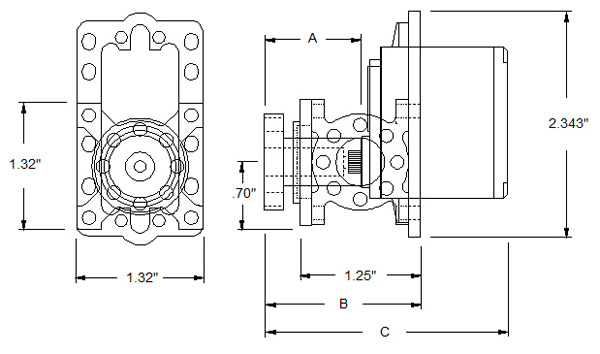

Dimensions
