Stepper Motor Driver TMC2130 v3 - Pack of 4

by BIQU
TMC2130-V3.0 is a new module that is optimized and upgraded to solve the problem that older drivers cannot choose to use the SPI working mode. The SPI...
59-00012243
Company: BIQU
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
39.90
Without VAT 32.18
+
WISHLIST COMPARE

DESCRIPTION

TMC2130-V3.0 is a new module that is optimized and upgraded to solve the problem that older drivers cannot choose to use the SPI working mode. The SPI working mode of TMC2130-V3.0 can directly select driver current, driver subdivision and other parameters through firmware, which makes these parameters more accurate. Using sequexternal sequencers, it can greatly reduce the workload of the chip and effectively avoid problems such as running deviation, losting step and fault caused by the overload of the chip.

Features:

  • Supports three control modes of STEP/DIR/SPI interface.
  • Combined maximum efficiency and optimum motor torque operation without noise.
  • High accuracy no sensor motor load detection
  • High load driver will not lost step



THE PACKAGE INCLUDES

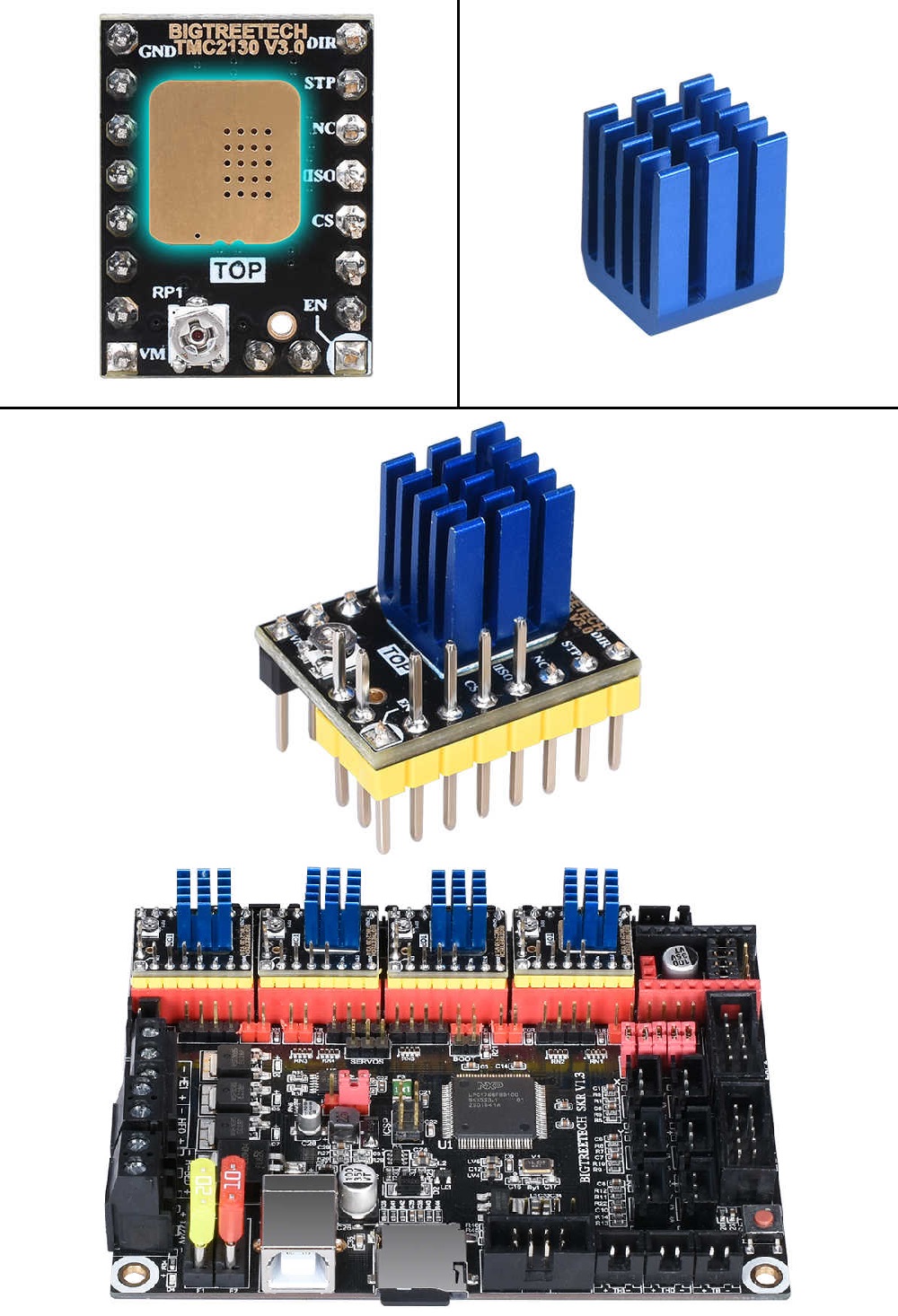

  • 4x Driver TMC2130 v3
  • 4x Heatsink
  • 1x Cable Chain



NOTES

  • This module is similar to TMC2100, which will generate a lot of heat energy when it working. Therefore, heat sink and heat dissipation fan must be added to cool it down during the use, which reduce the occurrence of losting steps and running deviation.
  • This driver can support STEP/DIR, SPI model , we will explain more details below.

SPECIFICATIONS

Driver Type:
  • Stepper
Max. Current per Channel:
2.5A

SPECIFICATIONS

  • Interface: Step/Dir or SPI
  • Configuration: CFG Pins or SPI
  • Native Microsteps: up to 1/256
  • microPlyer Microsteps: 1/256
  • Logic Voltage (VIO): 3-5V
  • Motor Voltage (VM): 5.5-46V
  • Motor Phase Current max: 1.2A RMS, 2.5A Peak
  • Internal V- Regulator: Enabled
  • RDSon: >=0.5 Ohm
  • stealthChop (quiet): Yes
  • spreadCycle: Yes
  • coolStep: Yes
  • stallGuard: Yes
  • dcStep: Yes
  • Dimensions: 20.5x15.5x15mm (without heatsink)
