Teensy 3.2

The Teensy is a breadboard-friendly development board with loads of features in a, well, teensy package. Each Teensy 3.2 comes pre-flashed with a bootloader...
03-00013736
Ογκομετρικό βάρος: 0kg
Εγγύηση: 12 Μήνες Εγγύηση Κατασκευαστή
Part Number: TEENSY32
Εξαντλημένο
Το προϊόν δεν είναι διαθέσιμο
Χωρίς απόθεμα στο φυσικό κατάστημα
24.90
Χωρίς ΦΠΑ 20.08

Συναινώ ώστε η εταιρεία (GRobotronics) να προσθέσει την διεύθυνση ηλεκτρονικού μου ταχυδρομείου στην λίστα ώστε να λάβω ενημέρωση όταν το προϊόν θα είναι ξανά διαθέσιμο. Μόλις το προϊόν γίνει ξανά διαθέσιμο θα λάβω αυτόματα ενημέρωση στο email αυτό και αμέσως θα αφαιρεθεί από την συγκεκριμένη λίστα.

Το email σου θα χρησιμοποιηθεί αποκλειστικά για τον σκοπό αυτό και καμία άλλη ενημέρωση δεν θα λάβεις. Θα είναι ορατό μόνο από συγκεκριμένους εξουσιοδοτημένους υπαλλήλους της εταιρείας.

Έχετε το δικαίωμα σε περίπτωση κατά την οποία θεωρείτε ότι η επεξεργασία που γίνεται δεν είναι σύμφωνη με τα ανωτέρω να αναζητείτε την προστασία της Αρχής Προσωπικών Δεδομένων και να ζητήσεις να διαγράψουμε ή να μεταβάλλουμε τα δεδομένα σου. Είμαστε υποχρεωμένοι σύμφωνα με τον κανονισμό της ΕΕ για την Προστασία των Γενικών Προσωπικών Δεδομένων να σε ενημερώσουμε για αυτό το δικαίωμα. Έχετε την δυνατότητα να επικοινωνείτε όποτε επιθυμείτε με την εταιρεία ώστε να ενημερωνόσαστε σχετικά με τα προσωπικά σας δεδομένα στο email dpo@grobotronics.com

ΑΓΑΠΗΜΕΝΑ ΣΥΓΚΡΙΣΗ

ΠΕΡΙΓΡΑΦΗ

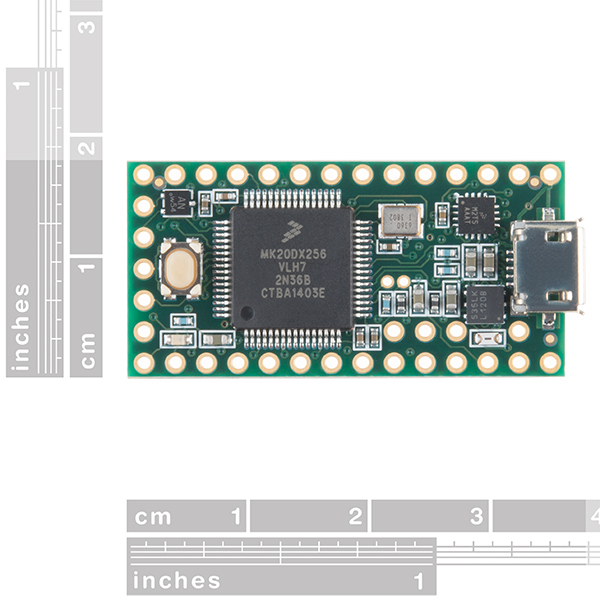

The Teensy is a breadboard-friendly development board with loads of features in a, well, teensy package. Each Teensy 3.2 comes pre-flashed with a bootloader so you can program it using the on-board USB connection: No external programmer needed! You can program for the Teensy in your favorite program editor using C or you can install the Teensyduino add-on for the Arduino IDE and write Arduino sketches for Teensy!

The processor on the Teensy also has access to the USB and can emulate any kind of USB device you need it to be, making it great for USB-MIDI and other HID projects. The 32 bit processor brings a few other features to the table as well, such as multiple channels of Direct Memory Access, several high-resolution ADCs and even an I2S digital audio interface! There are also 4 separate interval timers plus a delay timer! Oh yeah, and all pins have interrupt capability. Also, it can provide system voltage of 3.3V to other devices at up to 100mA.

All of this functionality is jammed into a 1.4 x 0.7 inch board with all headers on a 0.1" grid so you can slap in on a breadboard and get to work! The Teensy 3.2 adds a more powerful 3.3 volt regulator, with the ability to directly power an ESP8266 Wifi, WIZ820io Ethernet, and other 3.3V add-on boards that require a little more power. Additionally, if it is used within the Teensy 3.1 limits of operation, the Teensy 3.2 and 3.1 are interchangeable!

Note: This does not come with a USB cable, please check below for an appropriate one.

Dimensions: 1.4 x 0.7" (~35 x 18 mm)

Features:

  • 32 bit ARM Cortex-M4 72 MHz CPU (M4 = DSP extensions)
  • 256K Flash Memory, 64K RAM, 2K EEPROM
  • 21 High Resolution Analog Inputs (13 bits usable, 16 bit hardware)
  • 34 Digital I/O Pins (5V tolerance on Digital Inputs)
  • 12 PWM outputs
  • 7 Timers for intervals/delays, separate from PWM
  • USB with dedicated DMA memory transfers
  • 3 UARTs (serial ports)
  • SPI, I2C, I2S,CAN Bus, IR modulator
  • I2S (for high quality audio interface)
  • Real Time Clock (with user-added 32.768 crystal and battery)
  • 16 DMA channels (separate from USB)
  • Touch Sensor Inputs

Documents:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
12 Μήνες Εγγύηση Κατασκευαστή
Part Number:
TEENSY32
Μικτό Βάρος:
0.001kg
