Teensy LC

in category Teensy
The Teensy LC comes pre-flashed with a bootloader so you can program it using the on-board USB connection
03-00013305
Gross Weight: 0kg
Out of Stock
Product out of stock
No stock in retail store
15.80
Without VAT 12.74

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

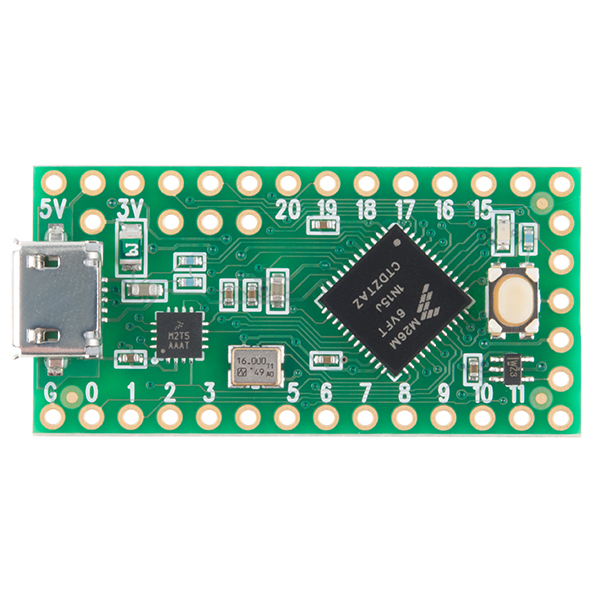

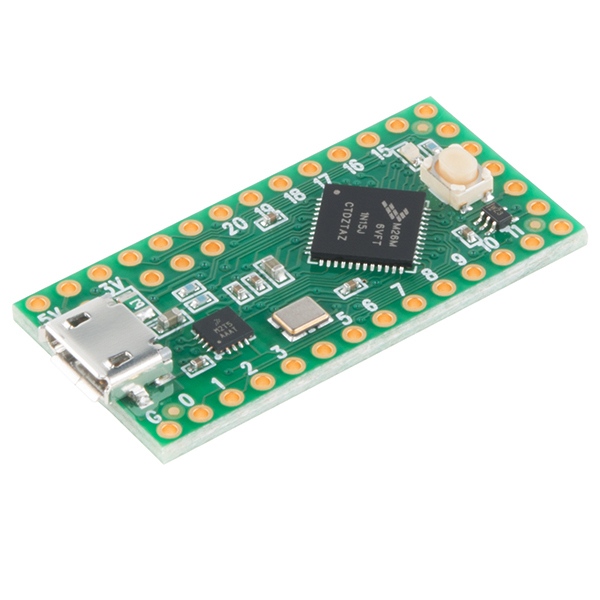

The Teensy is a breadboard-friendly development board with loads of features in a, well, teensy package. The Teensy LC (Low Cost) is a 32 bit microcontroller board that provides you with an uncomplicated option for getting started with the Teensy line of products without breaking the bank!

The Teensy LC comes pre-flashed with a bootloader so you can program it using the on-board USB connection: No external programmer needed! You can program for the Teensy in your favorite program editor using C or you can install the Teensyduino add-on for the Arduino IDE and write Arduino sketches for Teensy!

The processor on the Teensy also has access to the USB and can emulate any kind of USB device you need it to be, making it great for USB-MIDI and other HID projects. The 32 bit processor brings a few other features to the table as well, such as multiple channels of Direct Memory Access and an I2S digital audio interface! There are also 2 separate interval timers! Also, the Teensy LC can provide system voltage of 3.3V or 5V to other devices at up to 5-20mA.

All of this functionality is jammed into a 1.4 x 0.7 inch board with all headers on a 0.1" grid so you can slap it on a breadboard and get to work! So, what sets the Teensy LC apart from the Teensy 3.1? First off, this version has been streamlined to be as cost effective as possible. Obviously, the LC doesn’t share a lot of power that the 3.1 possesses but by no means does it make the LC a ‘weak’ board! The Teensy LC is equipped with 8kB RAM, 62kB of flash memory, and 27 Digital I/O pins with 13 high res Analog inputs.

Note: The Teensy LC does not come with a micro-B USB cable, please check the Recommended Products section below for an appropriate one.

Dimensions: 1.4 x 0.7" (~35 x 18 mm)

Features:

  • 32 bit ARM Cortex-M0+ 48 MHz CPU
  • 62kB Flash Memory, 8kB RAM, 1/8(emu)kB EEPROM
  • 13 High Resolution Analog Inputs
  • 27 Digital I/O Pins (NOT 5V Tolerant)
  • 10 PWM outputs
  • 7 Timers for intervals/delays, separate from PWM
  • 3 UARTs (serial ports)
  • SPI, I2C, & I2S
  • I2S (for high quality audio interface)
  • 4 Lightweight DMA channels
  • Touch Sensor Inputs
