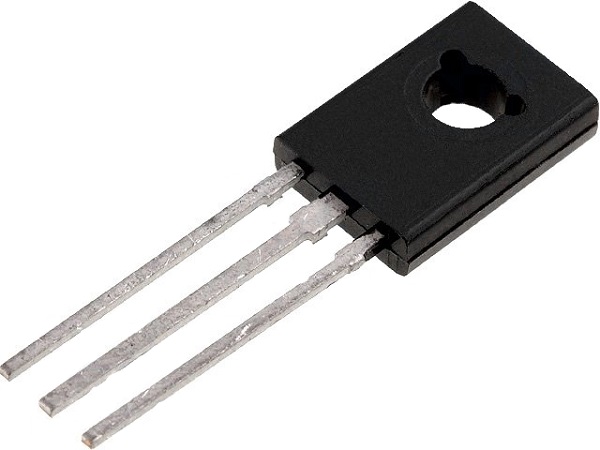

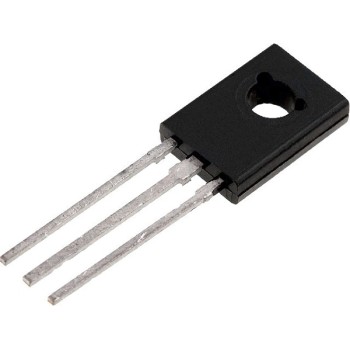

Transistor NPN 4A - BD679

05-00213562
Made in: China
Out of Stock
Product out of stock
Available in store
0.3000
Without VAT 0.24

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Transistor Type:
NPN
Max. Collector Current:
6000mA
Max. VCEO:
80V

EXTRA SPECIFICATIONS

  • Polarisation: Bipolar
  • Kind of transistor: Darlington
  • Mounting: THT
  • Kind of package: Tube
  • Configuration: Single
  • Transistor Polarity: NPN
  • Collector- Emitter Voltage VCEO Max: 80 V
  • Emitter- Base Voltage VEBO: 5 V
  • Collector- Base Voltage VCBO: 80 V
  • Maximum DC Collector Current: 4 A
  • Maximum Collector Cut-off Current: 200 uA
  • Pd - Power Dissipation: 40 W
  • Mounting Style: Through Hole
  • Package/Case: SOT-32
  • Maximum Operating Temperature: + 150 C
  • DC Collector/Base Gain hFE Min: 750

Dimensions

  • Height: 10.8mm
  • Length: 7.8mm
  • Width: 2.7mm
  • Unit Weight: 1,814g
