SparkFun Επιταχυνσιόμετρο 3 Αξόνων - ADXL362

The ADXL362 is a complete 3-axis MEMS acceleration measurement system that operates at extremely low power consumption levels.

03-00011446
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: SparkFun Electronics
Part Number: SEN-11446
Χώρα Προέλευσης: ΗΠΑ
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
23.00
Χωρίς ΦΠΑ 18.55
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 21.85

ΠΕΡΙΓΡΑΦΗ

We've been using and selling Analog Devices' ADXL accelerometers for a good while now, and now we've found another great part in the series! The ADXL362 is a complete 3-axis MEMS acceleration measurement system that operates at extremely low power consumption levels. It measures both dynamic acceleration, resulting from motion or shock, and static acceleration, such as tilt. It's easy to communicate with the ADXL362 over SPI and built-in digital logic even enables autonomous operation for "wake-on-shake" operation.

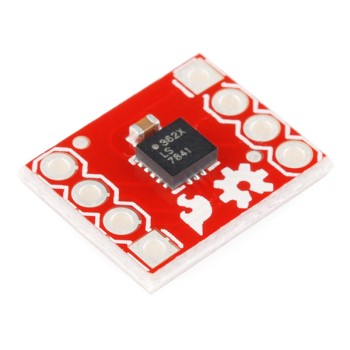

We think this is a really cool device, so we spun up a breakout board! Now you can add low-power-consumption motion sensing to your next project!

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
SparkFun Electronics
Part Number:
SEN-11446
Μικτό Βάρος:
0.0022kg
Χώρα Προέλευσης:
ΗΠΑ
Τύπος Αισθητήρα:
  • Επιταχυνσιόμετρο
Τυπική Τάση Εισόδου:
  • 3.3VDC
Ρεύμα Λειτουργίας:
1.8uA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • SPI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 3-Axis: ±2, ±4, ±8
  • Ultralow Power
  • SPI Digital Interface
  • High Resolution: 1 mg/LSB
  • Low Noise Down to 175 μg/√Hz
  • Wide Voltage Range: 1.6 V to 3.5 V
  • Adjustable Threshold for Motion Activation
  • Measurement Ranges Selectable via SPI Command
