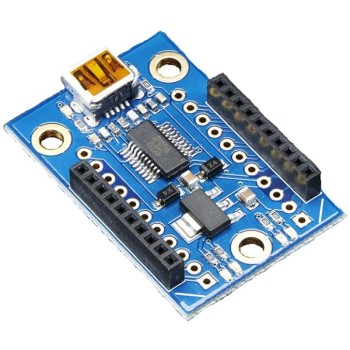

USB XBee Adapter

από OEM
This low cost XBee USB Adapter Board comes in partially assembled kit form and provides a cost-effective solution to interfacing a PC or microcontroller to any XBee or XBee Pro module.
09-00000247
Ογκομετρικό βάρος: 0.01kg
Κατασκευαστής: OEM
Part Number: ADA247
Χώρα Προέλευσης: ΗΠΑ
Κατόπιν Παραγγελίας
Παράδοση έως 30 ημέρες
Χωρίς απόθεμα στο φυσικό κατάστημα
40.00
Χωρίς ΦΠΑ 32.26
+

ΠΕΡΙΓΡΑΦΗ

This low cost XBee USB Adapter Board comes in partially assembled kit form and provides a cost-effective solution to interfacing a PC or microcontroller to any XBee or XBee Pro module. The PC connection can be used to configure the XBee Module through Digi's X-CTU software. Works with XBee series 1 and 2 as well as Pro modules
By using this adapter board you can provide an easy interface to the XBee or XBee Pro modules by converting the 2mm pin spacing to breadboard friendly 0.100" spacing. The adapter board also provides a means to connect pluggable wires or solder connections and also provides mounting holes.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
OEM
Part Number:
ADA247
Πρωτόκολλο:
  • Zigbee
Μικτό Βάρος:
0.0096kg
Χώρα Προέλευσης:
ΗΠΑ

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power requirements: 5.0V from USB or VDD pin, 3.3V generated on-board
  • Communication: Serial pass-through to XBee module/USB to Host PC
  • Dimensions: 1.51 x 1.00 x 0.58 in* (38.3 x 25.6 x 14.8 mm*)
    * when headers are attached
  • Operating temp range: -40 to +158F (-40 to +70C)
  • Works with all XBee & Pro modules!

ΔΥΝΑΤΟΤΗΤΕΣ

  • Provides an easy interface to configure XBee Modules using Digi's X-CTU software
  • Converts XBee 2mm pin spacing to 0.100" pin spacing
  • 4 status indicator LEDs for Power, RSSI, Associate and mode (sleep/ON)
  • Provides easy pluggable wire or solder connections
  • Includes mounting holes
  • Pin-out compatible with our other XBee Adapter boards
  • Partially assembled kit form for flexible configuration

ΘΑ ΧΡΕΙΑΣΤΕΙΣ ΕΠΙΣΗΣ

  • Soldering Iron
  • Solder
  • Flux
  • Diagonal cutters or Exacto knife
