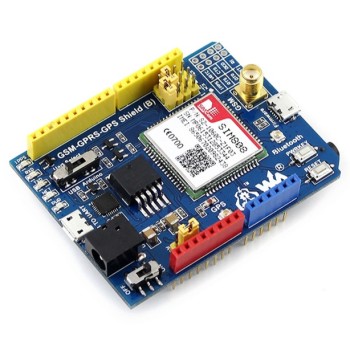

Waveshare GSM/GPRS/GPS Shield SIM808

GSM/GPRS/GPS Shield (B) is an Arduino shield based on the Quad-band GSM/GPRS/GPS module SIM808. Note: the UNO PLUS in the photo is NOT included.
31-00011492
Gross Weight: 0.34kg
Company: Waveshare
Made in: China
Out of Stock
Product out of stock
No stock in retail store
54.90
Without VAT 44.27

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

GSM/GPRS/GPS Shield (B) is an Arduino shield based on the Quad-band GSM/GPRS/GPS module SIM808.

Note: the UNO PLUS in the photo is NOT included.

SPECIFICATIONS

Shield Type:
  • GPRS/GSM
  • GPS

Notes

  • The UNO PLUS in the photo is NOT included.

EXTRA SPECIFICATIONS

  • Arduino connectivity, compatible with UNO, Leonardo, NUCLEO, XNUCLEO
  • Onboard USB TO UART converter CP2102 for UART debugging
  • 5 x LEDs for indicating the module working status
  • Onboard voltage level converter, supports both 3.3V and 5V systems
  • SIM card slot for 1.8V/3V SIM card
  • Baudrate auto detection (1200bps ~115200bps)
  • Bluetooth 3.0, supports data transferring through Bluetooth
  • RTC with power supply interface
  • Firmware upgradable via USB
  • Control via AT commands (3GPP TS 27.007,27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: GSM 11.14 Release 99
  • Operating voltage: 6 ~ 12V
  • Operation temperature: -40 °C ~ +85 °C
  • Storage temperature: -45 °C ~ +90 °C



FEATURES

GSM/GPRS

  • Band
    • GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
    • Quad-band auto search
    • Compliant to GSM phase 2/2+
  • Emitting power
    • Class 4 (2W @ GSM 850/EGSM 900 MHz)
    • Class 1 (1W @ DCS 1800/PCS 1900 MHz)
  • GPRS connectivity
    • GPRS multi-slot class 12 (default)
    • GPRS multi-slot class 1~12 (configurable)
  • GPRS data feature
    • Downlink speed: max 85.6kbps
    • Uplink speed: max 85.6kbps
    • Coding schemes: CS-1\CS-2\CS-3\CS-4
    • Supports PAP (Password Authentication Protocol) for PPP connection
    • Embedded TCP/IP protocol
    • Supports PBCCH
    • Supports CSD transmission speed: 2.4/4.8/9.6/14.4 kbps
    • Supports USSD
  • SMS
    • Supports: MT/MO/CB/Text/PDU mode
    • SMS storage: SIM card
  • Audio
    • Voice encode/decode mode: Half Rate\Full Rate\Enhanced Full Rate\Adaptive muti rate
    • Supports echo cancellation
    • Supports noise reduction

GPS

  • Receiver type
    • 22 tracking channels
    • 66 acquisition channels
    • GPS L1 C/A code
  • Sensitivity
    • Tracking: -165 dBm
    • Cold starts : -148 dBm
  • Time-To-First-Fix
    • Cold starts : 30s (typ.)
    • Hot starts : < 1s
    • Warm starts: 28s
  • Accuracy
    • Horizontal position : <2.5m CEP

Dimensions

Contents

  • 1x GSM/GPRS/GPS Shield (B)
  • 1x GSM Antenna × 1
  • 1x GPS External Antenna (B)
  • 1x Bluetooth Antenna
  • 1x Power adapter EU standard
  • 1x USB type A plug to micro plug cable
