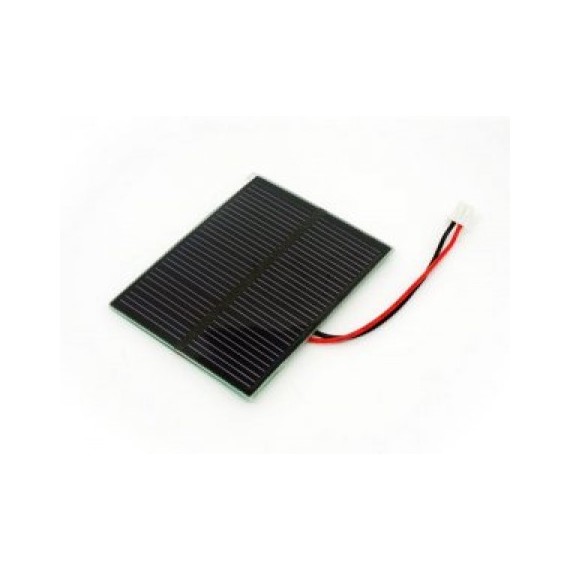

Φωτοβολταϊκή Κυψέλη 0.5W 55x70mm

32-13070004
313070004
ΚατασκευαστήςSeeed Studio Part Number313070004
Διαθέσιμο
Αποστολή σε 24 ώρες
€480
Seeed Studio
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
This solar panel is made of single-crystal material that performs high solar energy transformation efficiency at 17%. It has a fine resin surface and sturdy back suitable for outdoor environments. A 2mm JST connecter is attached to the penal, which makes it perfect to team up with most of our can-use-solar-power-supply boards, like Seeeduino microcontroller series, Lipo Rider charging boards series and XBee carrier WSN products series.

The typical open circuit voltage is around 5V, depending on light intensity. In those bright summer days with clear sky and big sun, the peak OC voltage can rush up to 10V. To prevent any damage to boards that accept a narrow range of input voltage, like Lipo Rider, it’s recommended to check whether the OC voltage is safe before any connection.

Χαρακτηριστικά:
  • Dimensions: 70x55x3(±0.2) mm
  • Typical voltage: 5.5V
  • Typical current: 100mA
  • Open-circuit voltage: 8.2 V
  • Maximum load voltage: 6.4V
  • Typical peak power: 0.55W
  • Length: 70 mm
  • Width: 55 mm
  • Depth: 1.5 mm
  • Weight: 17g
  • Efficiency: 17%
  • Wire diameter: 1.5mm
  • Connector: 2.0mm JST
Κατασκευαστής
Seeed Studio
Part Number
313070004
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.001kg
