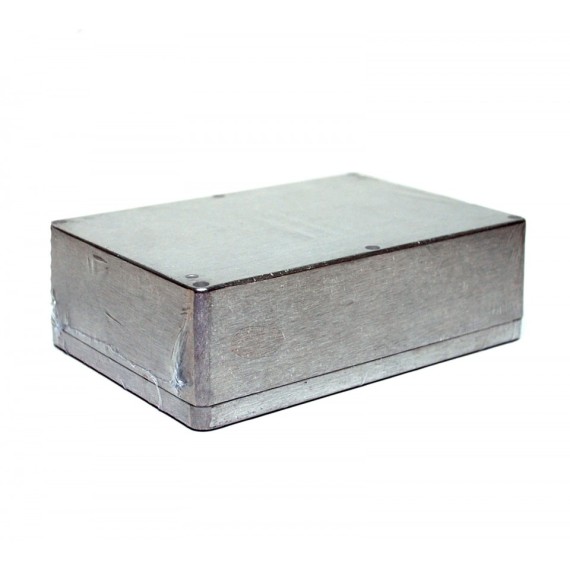

G120 — Sealed enclosure natural aluminum color, production is made of aluminum alloy ADC-10 (JIS). Provides protection against dust and moisture according to the standard IP65. Overall dimensions are: length 171mm, width 121mm, height 55mm. On the inner surface of the case cast stand for the horizontal and guides for vertical PCB mounting.
Specifications:
- Manufacturer GAINTA
- Enclosure type multipurpose
- Dimension X 121mm
- Dimension Y 171mm
- Dimension Z 55mm
- Enclosure material aluminium
- Body colour natural
- Cover colour natural
- Sealing IP65
- 4 screws
- holes and guides for mounting PCBs
- gasket
