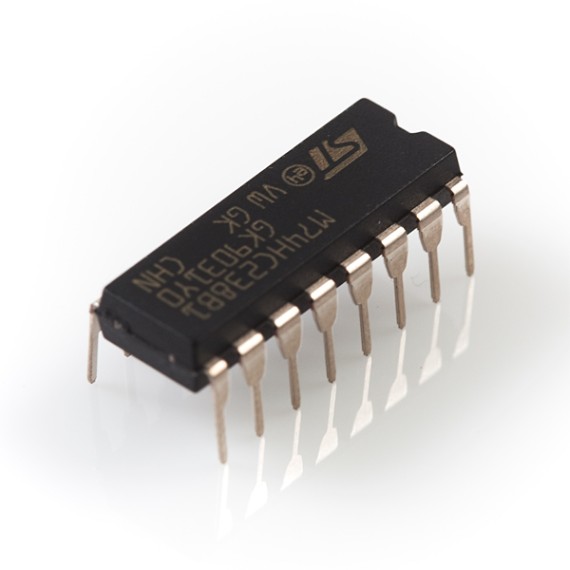

74HC238 3 to 8 Line Decoder

in category Decoders - Encoders

The 74HC238 is a high speed CMOS 3 to 8 line decoder.

05-00074238
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.50
Without VAT 0.40
+
Our quantity discounts:
Quantity 25+ 100+ 1000+
Price 0.4000 0.3499 0.3000
WISHLIST COMPARE

DESCRIPTION

The 74HC238 is a high speed CMOS 3 to 8 line decoder. There are three binary select inputs (A, B, and C) which determine which one of the eight outputs (Y0-Y7) will go high. This chip has three enable inputs (G1, ~G2A, and ~G2B); when any enable pins are brought low (or high in G1's case), all output pins are pulled low.

This is a great tool if you need to increase the number of outputs on your micrcontroller.

Specifications:

  • High speed
  • Wide operating voltage range (2 to 6VDC)
  • Low power dissipation (~4µA)
  • High noise immunity
  • Symmetrical output impedance
  • Balanced propagation delays
  • Inputs equipped with protection circuits against static discharge and transient excess voltage
