Aluminum Flex Shaft Coupler - 5mm to 6.35mm

από OEM
This coupler will connect a 6.35mm diameter shaft to a 5mm diameter shaft.
14-00069312
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
3.20
Χωρίς ΦΠΑ 2.58
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 2.56 2.24

ΠΕΡΙΓΡΑΦΗ

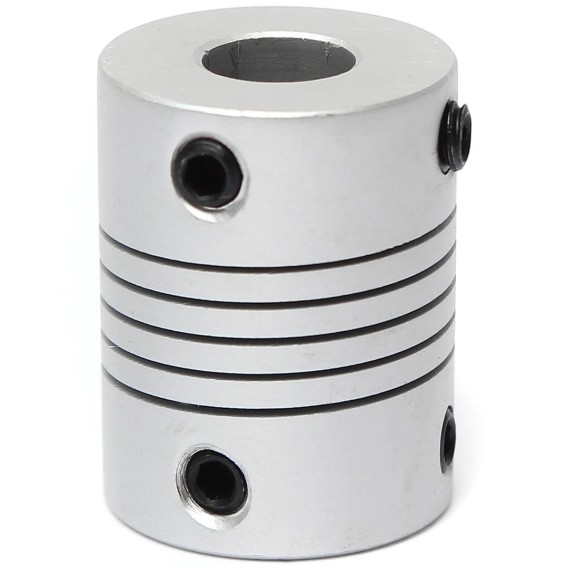

Connect this to that with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work.

This coupler will connect a 6.35mm diameter shaft to a 5mm diameter shaft. A perfect add on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.

Χαρακτηριστικά:

  • Measures 1" x 0.75" diameter / 25mm x 19mm diameter
  • 6.35mm inner diameter / 5mm inner diameter
  • 18 grams

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.02kg
Εσωτερική Διάμετρος A:
5mm
Εσωτερική Διάμετρος B:
6.35mm
Εξωτερική Διάμετρος:
18mm
Μήκος:
25mm
Τύπος Συνδέσμου:
Flexible
Υλικό:
Aluminum
