Aluminum Flex Shaft Coupler - 6.35mm to 6.35mm

Κωδικός:

14-00069317

ΚατασκευαστήςOem

Εξαντλημένο

€3²⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

100+

Τιμή

€2.56

€2.24

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

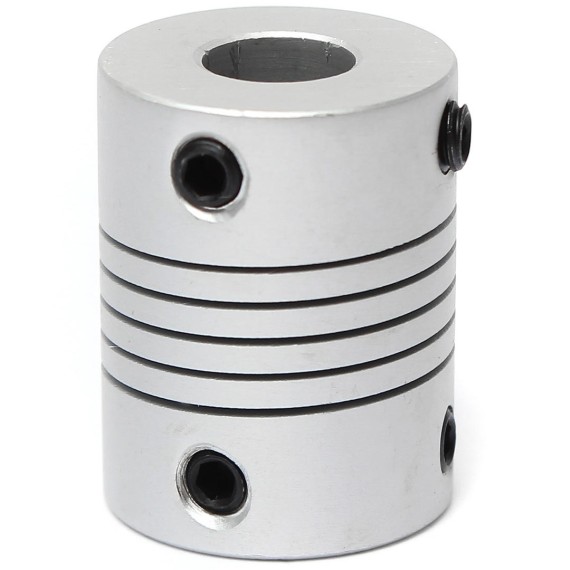

Connect this to that with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work.

This coupler will connect a 6.35mm diameter shaft to a 6.35mm diameter shaft. A perfect add on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.

Χαρακτηριστικά:
