Aluminum GT2 Timing Pulley - 60 Tooth - 19mm Bore

από WAVESHARE
AF 60-tooth aluminum alloy timing pulley with ribs, which has the advantages of no lubrication, low noise, etc. It has four flat holes with M3 tapping for...
31-00022384
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: PT-AF-2GT-60T-19B-6-A
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
7.60
Χωρίς ΦΠΑ 6.13
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 6.84

ΠΕΡΙΓΡΑΦΗ

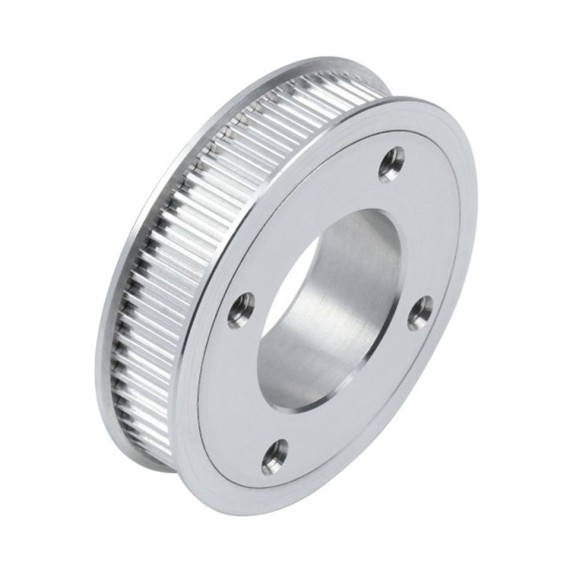

AF 60-tooth aluminum alloy timing pulley with ribs, which has the advantages of no lubrication, low noise, etc. It has four flat holes with M3 tapping for fixing with other parts, and the center hole can be installed with F6800ZZ flange bearings, which can share radial forces and ensure that the machine can rotate smoothly even under heavy loads.

  • Adopting aluminum alloy material, it has stronger corrosion-resistant.
  • 2GT tooth form, better compatibility.
  • The diameter of the center hole is 19mm, and two F6800ZZ flange bearings can be installed to share the radial force.
  • With four M3 tapping holes for fixing external parts.
  • Provides product models and assembly models example.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
PT-AF-2GT-60T-19B-6-A
Μικτό Βάρος:
0.01kg
Τύπος:
GT2 6mm
Δόντια:
60T
Εσωτερική Διάμετρος:
19mm
Υλικό:
Aluminum
